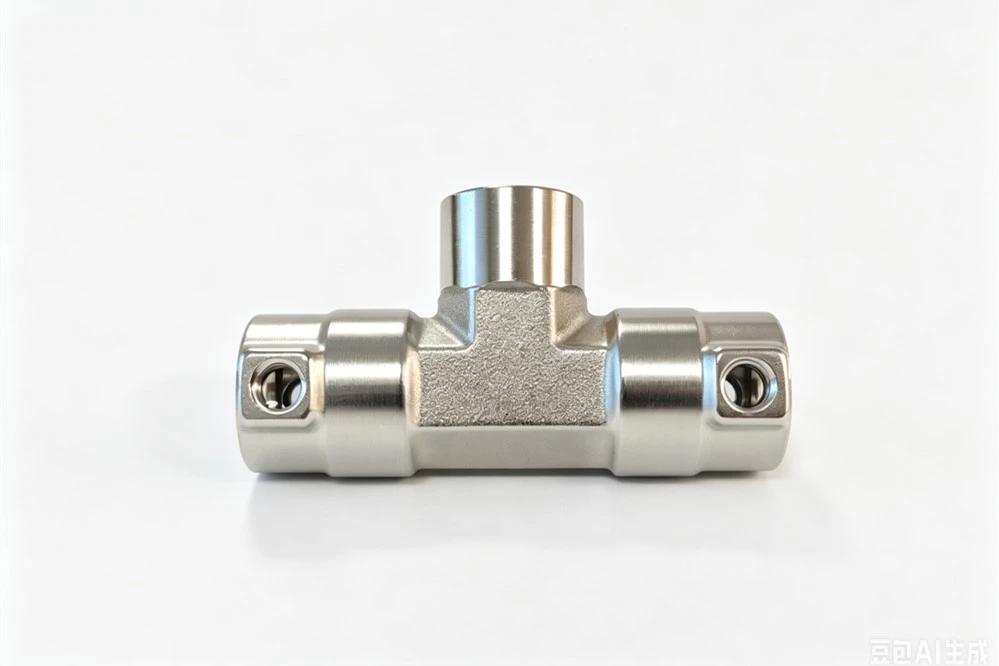

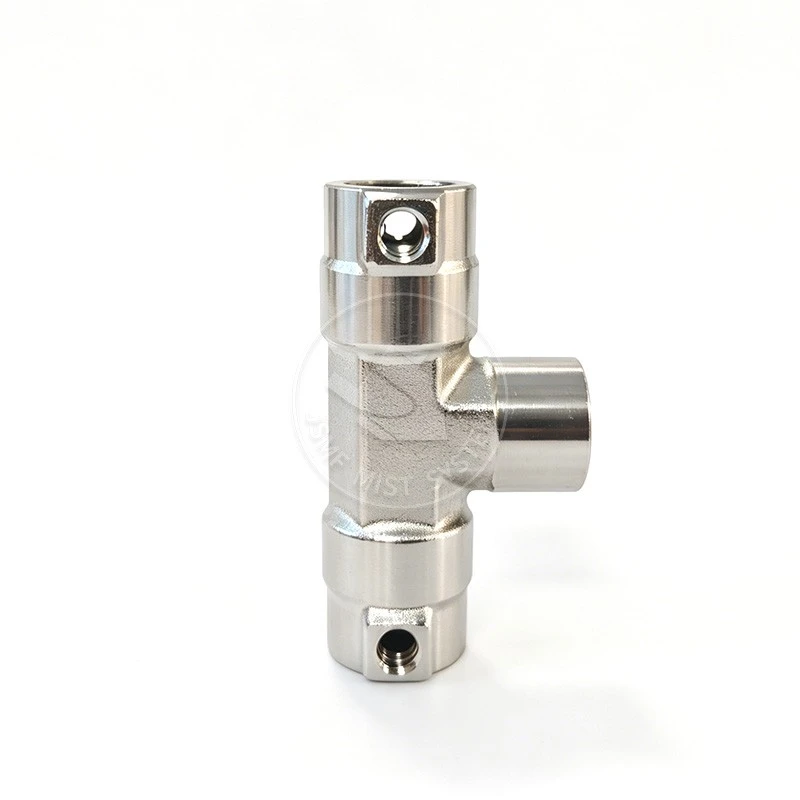

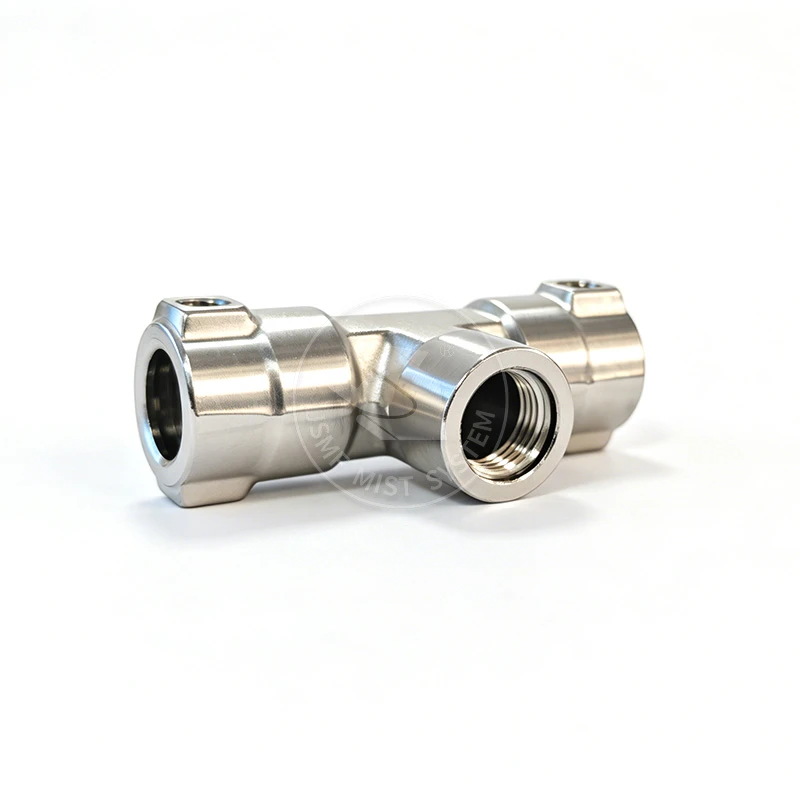

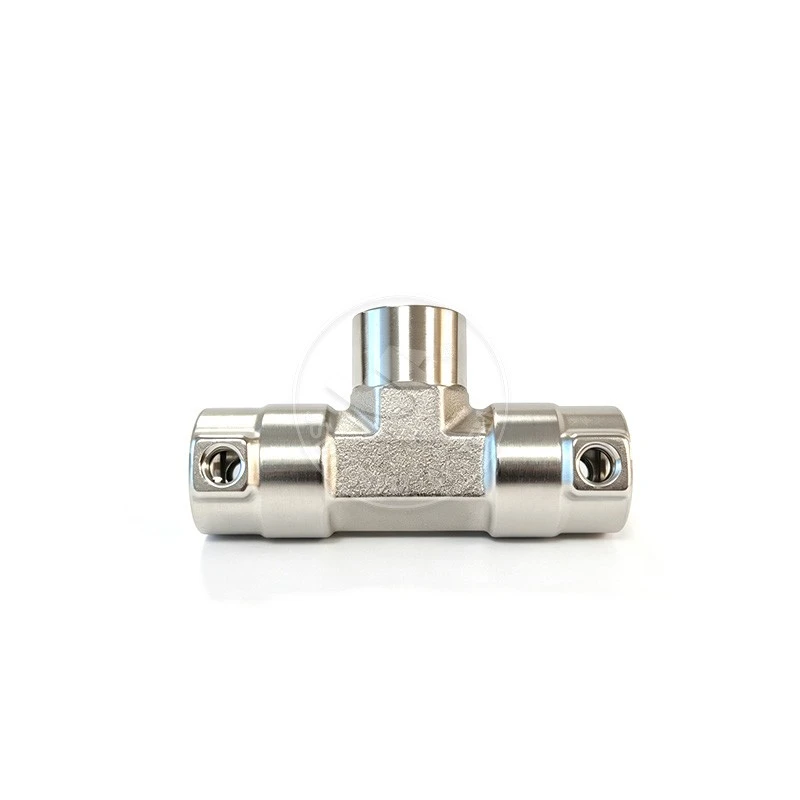

Mechanical Joint Pipe Base - Secure Pipeline Support & Connection Solution
The Mechanical Joint Pipe Base represents Jinsheng Mist's engineered approach to secure misting system pipeline installation, combining robust mechanical fastening with flexible pipe support in a single integrated unit. This precision-machined fitting provides stable mounting points for high-pressure misting lines while accommodating thermal expansion and vibration, ensuring leak-free operation at pressures up to 70 bar. Designed for both indoor and outdoor installations, this mechanical joint base streamlines system assembly, reduces installation time, and delivers long-term reliability across residential, commercial, and industrial misting applications worldwide.
Robust Mechanical Design
Our mechanical pipe mounting base utilizes a proven fastening architecture:
Dual-Component Assembly: Base plate with mechanical joint clamp for secure pipe retention
Adjustable Clamping Range: Accommodates various pipe diameters (4mm to 12mm OD)
Vibration Dampening: Rubber or EPDM gaskets absorb system vibration and water hammer
Thermal Expansion Allowance: Permits slight pipe movement without stress or leakage
Premium Material Construction
The mechanical joint pipe support is manufactured from durable materials:
304/316L Stainless Steel: Maximum corrosion resistance for harsh outdoor and industrial environments
Hot-Dip Galvanized Steel: Cost-effective option with enhanced rust protection
UV-Resistant Polymer Base: Non-conductive, lightweight option for residential applications
Stainless Steel Hardware: All bolts, nuts, and clamps included for complete installation
Versatile Mounting Options
Wall Mount: Flat base plate for vertical surface installation
Floor Mount: Elevated base with anchor points for ground or roof mounting
Beam Clamp: U-bolt design for attachment to structural beams or railings
Adjustable Angle: Swivel base allows pipe routing at various angles
Precision Engineering
Tight Tolerance Machining: Ensures consistent fit and secure grip across all connections
Smooth Contact Surfaces: Prevents pipe damage during installation and operation
Pre-Drilled Mounting Holes: Standardized hole patterns for quick installation
Modular Design: Multiple bases can be linked for continuous pipe support runs
-
Secure Pipeline Support
- High-Pressure Rating: Suitable for misting systems up to 70 bar operating pressure
- Vibration Resistance: Mechanical joint design maintains grip under continuous system vibration
- Thermal Stability: Accommodates pipe expansion and contraction without loosening
- Load-Bearing Capacity: Supports horizontal and vertical pipe runs without sagging
-
Rapid Installation
- Tool-Efficient Assembly: Standard wrenches required-no specialty tools needed
- Pre-Assembled Components: Ready to install out of the box with all hardware included
- Adjustable On-Site: Fine-tune clamping pressure and pipe position during installation
- Beginner-Friendly: Minimal training required for proper installation
-
Long-Term Reliability
- Corrosion Resistance: Premium materials withstand outdoor exposure and harsh environments
- Minimal Maintenance: Once installed, requires only periodic visual inspection
- Reusable Design: Can be removed and reinstalled during system modifications
- Extended Service Life: 15+ years expected lifespan in standard conditions
-
Cost-Effective Solution
- Reduced Labor Time: Faster installation compared to welded or threaded supports
- Lower Material Waste: Adjustable design accommodates field measurement variations
- No Specialized Skills: General contractors can install without misting system expertise
- Minimal Downtime: Quick replacement during maintenance or system upgrades
Performance Specifications
|
Parameter |
Specification |
|
Operating Pressure |
Up to 70 bar |
|
Pipe Compatibility |
4mm, 6mm, 8mm, 10mm, 12mm OD (selectable) |
|
Material Options |
304 SS, 316L SS, Galvanized Steel, UV-Resistant Polymer |
|
Mounting Type |
Wall, Floor, Beam Clamp, Adjustable Angle |
|
Temperature Range |
-20℃ to 80℃ (material dependent) |
|
Load Capacity |
5–15 kg per base (depending on mounting type) |
|
Vibration Resistance |
Tested to 10 Hz–1000 Hz frequency range |
|
Corrosion Rating |
Salt spray tested 500+ hours (stainless steel) |
|
Certifications |
CE, RoHS, ISO9001 |
Application Scenarios
|
Industry |
Application |
|
Residential |
Backyard misting systems, patio cooling, pool perimeter |
|
Commercial |
Outdoor restaurant cooling, shopping plaza misting, hotel grounds |
|
Industrial |
Factory workshop misting, warehouse dust control, loading dock cooling |
|
Agricultural |
Greenhouse misting distribution, livestock cooling systems |
|
Landscape |
Water feature fogging, park cooling zones, garden displays |
|
Public Facilities |
Bus stop cooling, pedestrian walkway misting, sports field sidelines |
Technical Comparison
|
Feature |
Mechanical Joint Pipe Base |
Welded Support |
Threaded Support |
|
Installation Time |
5–10 minutes per base |
30–60 minutes |
20–40 minutes |
|
Tools Required |
Standard wrenches |
Welding equipment |
Pipe threader, wrenches |
|
Reusability |
High |
None |
Low |
|
Vibration Resistance |
Excellent |
Moderate |
Moderate |
|
Skill Level |
Beginner |
Professional |
Intermediate |
|
Total Installed Cost |
Lowest |
Highest |
Moderate |
Installation Guidelines
Surface Preparation
|
Step |
Action |
|
1 |
Select mounting location with adequate structural support |
|
2 |
Clean surface of debris, rust, or loose material |
|
3 |
Mark drilling holes using base plate as template |
|
4 |
Pre-drill holes appropriate for anchor type (concrete, wood, steel) |
Installation Procedure
Position base at marked location
Insert anchors or fasteners through pre-drilled holes
Secure base to surface with appropriate hardware (not included-select for surface type)
Open mechanical joint clamp and insert pipe
Tighten clamp bolts to specified torque (typically 5–8 Nm)
Verify pipe is secure and properly aligned
Torque Specifications
|
Pipe Size |
Recommended Torque |
|
4mm |
3–5 Nm |
|
6mm |
4–6 Nm |
|
8mm |
5–7 Nm |
|
10mm |
6–8 Nm |
|
12mm |
7–10 Nm |
Maintenance Recommendations
|
Frequency |
Task |
|
Monthly |
Visual inspection for loose bolts or pipe movement |
|
Quarterly |
Check clamp tightness and retorque if necessary |
|
Semi-Annually |
Inspect for corrosion or material degradation |
|
Annually |
Replace any damaged or heavily corroded bases |
Material Selection Guide
|
Material |
Best For |
Temperature Range |
Corrosion Resistance |
Cost |
|
304 Stainless Steel |
General outdoor, commercial |
-20℃ to 80℃ |
High |
Moderate |
|
316L Stainless Steel |
Coastal, chemical, industrial |
-20℃ to 80℃ |
Very High |
High |
|
Galvanized Steel |
Indoor, protected outdoor |
-10℃ to 60℃ |
Moderate |
Low |
|
UV-Resistant Polymer |
Residential, light commercial |
-10℃ to 50℃ |
Good (non-corrosive) |
Low |
Conclusion
For misting system installations requiring secure, reliable, and rapidly deployable pipeline support, the Mechanical Joint Pipe Base delivers unmatched convenience through its robust mechanical fastening design and versatile mounting options. With its premium material construction, comprehensive size range, and proven performance across residential, commercial, and industrial applications worldwide, this mechanical joint solution offers an ideal choice for contractors, facility managers, and system designers seeking to reduce installation time, minimize labor costs, and ensure long-term pipeline stability-making it the preferred foundation for modern high-pressure misting system distribution networks where efficiency, reliability, and user-friendly installation are essential requirements.
