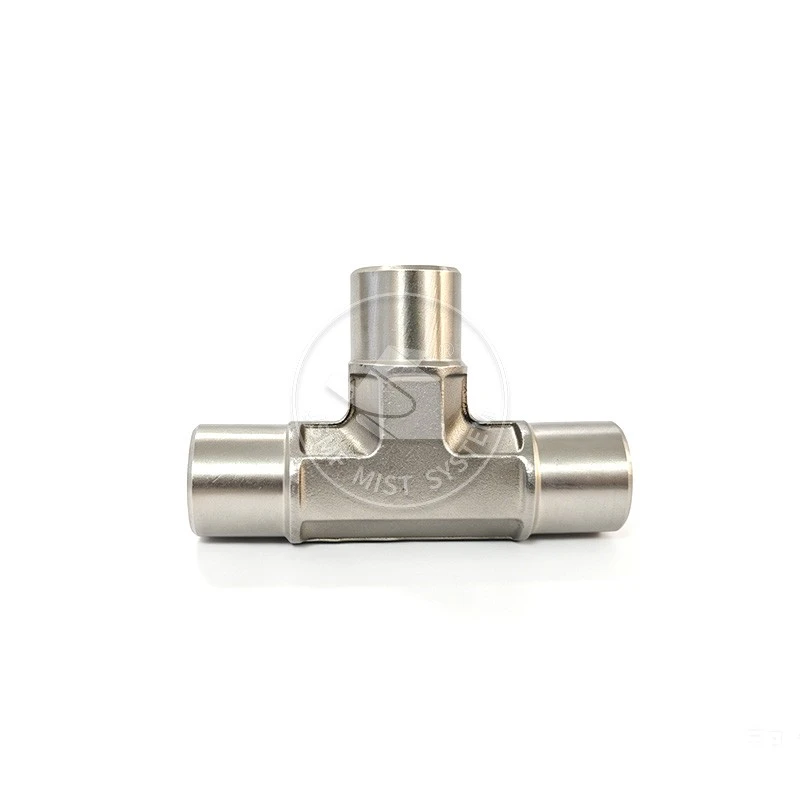

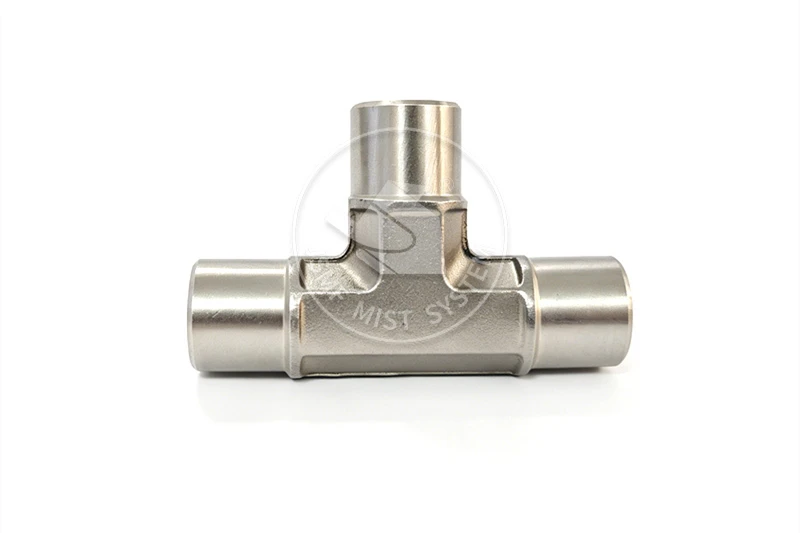

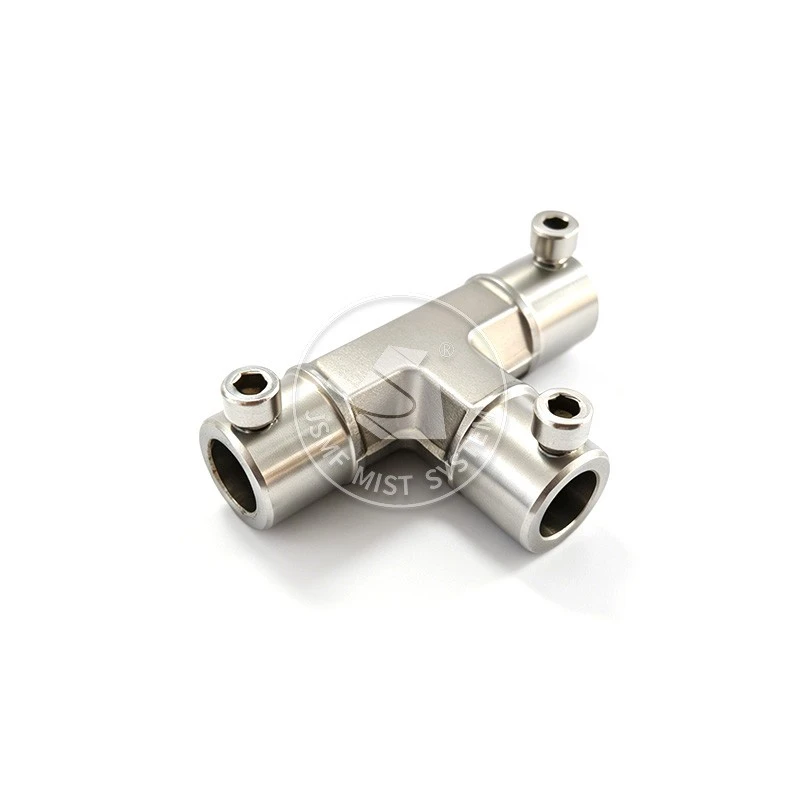

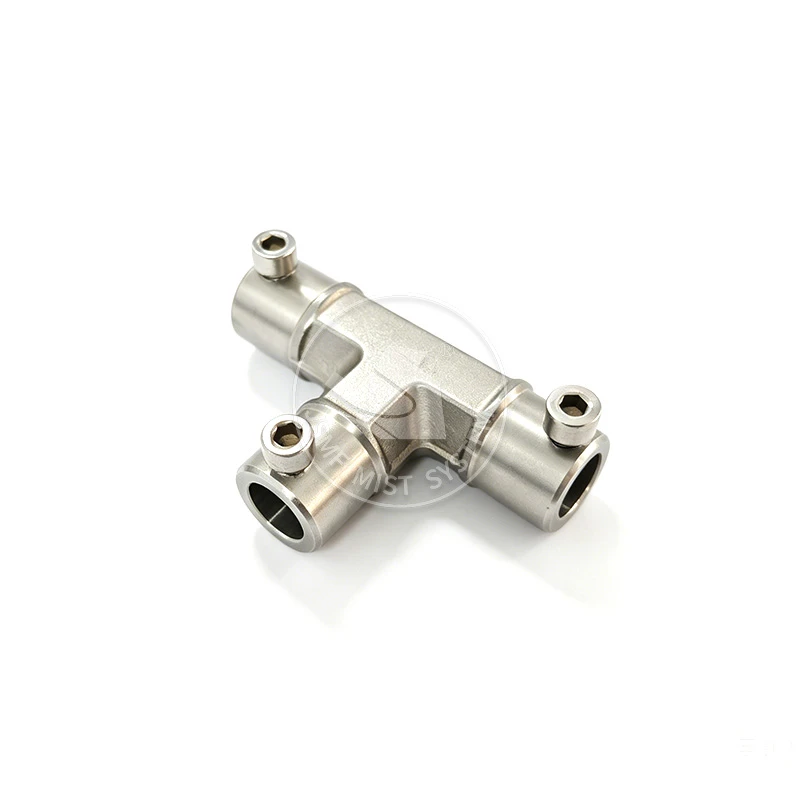

Mechanical Joint Tee - Tool-Free Three-Way Pipe Connection Solution for High-Pressure Misting Systems

The Mechanical Joint Tee represents Jinsheng Mist's engineered solution for creating three-way pipe connections in high-pressure misting installations without welding, threading, or specialized tools. This precision-machined T-fitting features a robust mechanical joint design that creates secure, leak-free connections at operating pressures up to 70 bar while accommodating slight pipe misalignment and thermal expansion. Designed for both new installations and system modifications, this mechanical tee fitting streamlines pipeline branching, reduces installation time, and delivers long-term reliability across residential, commercial, and industrial misting systems worldwide.

Product Features

Robust Mechanical Joint Design

Our mechanical T-connector utilizes a proven fastening architecture:

Three-Side Mechanical Joints: All three ports feature secure mechanical grip for pipe retention

Equal or Reducing Configuration: Standard equal tee or reducing tee options for various pipe sizes

Adjustable Clamping Range: Accommodates various pipe diameters (4mm to 12mm OD)

Vibration Dampening: EPDM or rubber gaskets absorb system vibration and water hammer

Premium Material Construction

The mechanical joint pipe tee is manufactured from durable materials:

304/316L Stainless Steel: Maximum corrosion resistance for harsh outdoor and industrial environments

Brass: Cost-effective option with good corrosion resistance for commercial applications

Hot-Dip Galvanized Steel: Budget-friendly choice with enhanced rust protection

UV-Resistant Polymer: Lightweight, non-conductive option for residential installations

Versatile Configuration Options

Equal Tee: All three ports same diameter for consistent pipe runs

Reducing Tee: Different port sizes for system transitions (e.g., 10mm×10mm×8mm)

Swivel Tee: Rotating branch port allows flexible pipe routing angles

Threaded Port Option: One end threaded for equipment or valve connection

Precision Engineering

Tight Tolerance Machining: Ensures consistent fit and secure grip across all connections

Smooth Internal Flow Path: Minimizes pressure drop at branching points

Burst Pressure Rating: Tested to 150+ bar for safety margin

Temperature Range: Stable performance from -20℃ to 80℃

Key Advantages

Secure, Leak-Free Connections
High-Pressure Rating: Suitable for misting systems up to 70 bar operating pressure

Triple Mechanical Grip: All three ports maintain secure hold under continuous system vibration

Thermal Stability: Accommodates pipe expansion and contraction without loosening

Dual O-Ring Sealing: Each port features dual O-rings to prevent drips and pressure loss
Rapid Installation
Tool-Efficient Assembly: Standard wrenches required-no specialty tools needed

No Welding or Threading: Eliminates need for hot work permits or pipe threading equipment

Adjustable On-Site: Fine-tune pipe position and alignment during installation

Beginner-Friendly: Minimal training required for proper installation
Long-Term Reliability
Corrosion Resistance: Premium materials withstand outdoor exposure and harsh environments

Minimal Maintenance: Once installed, requires only periodic visual inspection

Reusable Design: Can be removed and reinstalled during system modifications

Extended Service Life: 15+ years expected lifespan in standard conditions
Cost-Effective Solution
Reduced Labor Time: 50% faster installation compared to welded or threaded tees

Lower Material Waste: Adjustable design accommodates field measurement variations

No Specialized Skills: General contractors can install without misting system expertise

Minimal Downtime: Quick replacement during maintenance or system upgrades

Performance Specifications

Parameter	Specification
Operating Pressure	Up to 70 bar (tested to 150+ bar burst)
Pipe Compatibility	4mm, 6mm, 8mm, 10mm, 12mm OD (selectable)
Configuration	Equal tee, Reducing tee, Swivel tee
Material Options	304 SS, 316L SS, Brass, Galvanized Steel, Polymer
Temperature Range	-20℃ to 80℃ (material dependent)
Connection Type	Mechanical joint (push-to-lock or clamp-style)
Flow Coefficient	Minimal pressure drop (<0.15 bar at rated flow)
Vibration Resistance	Tested to 10 Hz–1000 Hz frequency range
Certifications	CE, RoHS, ISO9001, NSF (drinking water option)

Application Scenarios

Industry	Application
Residential	Backyard misting systems, patio cooling, pool perimeter piping branches
Commercial	Outdoor restaurant cooling, shopping plaza misting, hotel grounds
Industrial	Factory workshop misting, warehouse dust control, loading dock systems
Agricultural	Greenhouse misting distribution, livestock cooling pipeline branching
Landscape	Water feature fogging, park cooling zones, garden display piping
Public Facilities	Bus stop cooling, pedestrian walkway misting, sports field sidelines

Technical Comparison

Feature	Mechanical Joint Tee	Welded Tee	Threaded Tee
Installation Time	5–10 minutes per tee	30–60 minutes	20–40 minutes
Tools Required	Standard wrenches	Welding equipment	Pipe threader, wrenches
Reusability	High	None	Low
Leak Resistance	Excellent (dual O-ring per port)	Good (weld dependent)	Moderate
Vibration Resistance	Good	Excellent	Moderate
Skill Level	Beginner	Professional	Intermediate
Total Installed Cost	Lowest	Highest	Moderate

Installation Guidelines

Pipe Preparation

Step	Action
1	Cut pipe square using pipe cutter or sharp blade
2	Deburr pipe end to remove any rough edges
3	Ensure pipe end is clean and free of debris
4	Mark insertion depth on pipe for verification

Installation Procedure

Inspect tee for debris or damage before installation

Loosen mechanical joint clamps on all three ports

Insert first pipe end until it bottoms out (check depth mark)

Tighten first clamp to specified torque (5–8 Nm typical)

Route second pipe and insert into opposite end

Tighten second clamp and verify alignment

Insert branch pipe into third port

Tighten third clamp and verify all connections

Pressurize system and check for leaks at all three connections

Torque Specifications

Pipe Size	Recommended Torque
4mm	3–5 Nm
6mm	4–6 Nm
8mm	5–7 Nm
10mm	6–8 Nm
12mm	7–10 Nm

Material Selection Guide

Material	Best For	Temperature Range	Corrosion Resistance	Cost
304 Stainless Steel	General outdoor, commercial	-20℃ to 80℃	High	Moderate
316L Stainless Steel	Coastal, chemical, industrial	-20℃ to 80℃	Very High	High
Brass	Indoor, protected outdoor	-10℃ to 60℃	Moderate	Low-Moderate
Galvanized Steel	Indoor, budget projects	-10℃ to 60℃	Moderate	Low
UV-Resistant Polymer	Residential, light commercial	-10℃ to 50℃	Good (non-corrosive)	Low

Maintenance Recommendations

Frequency	Task
Monthly	Visual inspection for leaks or pipe movement
Quarterly	Check clamp tightness and retorque if necessary
Semi-Annually	Inspect O-rings for wear or degradation
Annually	Replace any damaged or heavily corroded fittings

Common Configurations

Pipe Size	Type	Part Number	Material Options
4mm	Equal	MJT-4-E	SS, Brass, Polymer
6mm	Equal	MJT-6-E	SS, Brass, Polymer
8mm	Equal	MJT-8-E	SS, Brass, Steel
10mm	Equal	MJT-10-E	SS, Brass, Steel
12mm	Equal	MJT-12-E	SS, Steel
8mm×8mm×6mm	Reducing	MJT-886-R	SS, Brass
10mm×10mm×8mm	Reducing	MJT-10108-R	SS, Brass
12mm×12mm×10mm	Reducing	MJT-121210-R	SS, Steel
6mm	Swivel	MJT-S6	SS, Brass
8mm	Swivel	MJT-S8	SS, Brass

Troubleshooting Guide

Issue	Possible Cause	Solution
Leak at connection	Pipe not fully inserted	Depressurize, disconnect, reinsert properly
Leak at connection	Damaged O-ring	Replace O-ring or entire tee fitting
Pipe slips out	Worn gripping teeth	Replace tee fitting
Difficult insertion	Pipe not cut square	Recut pipe end square
Pressure drop	Debris in tee	Clean or replace tee fitting

Conclusion

For misting system installations requiring reliable, rapidly deployable three-way pipe connection solutions, the Mechanical Joint Tee delivers unmatched convenience through its robust mechanical fastening design and leak-free dual O-ring sealing on all three ports. With its versatile material options, comprehensive size range, and proven performance across residential, commercial, and industrial applications worldwide, this mechanical joint solution offers an ideal choice for contractors, facility managers, and system designers seeking to reduce installation time, minimize labor costs, and ensure long-term pipeline integrity-making it the preferred tee fitting for modern high-pressure misting system distribution networks where efficiency, reliability, and user-friendly installation are essential requirements.
