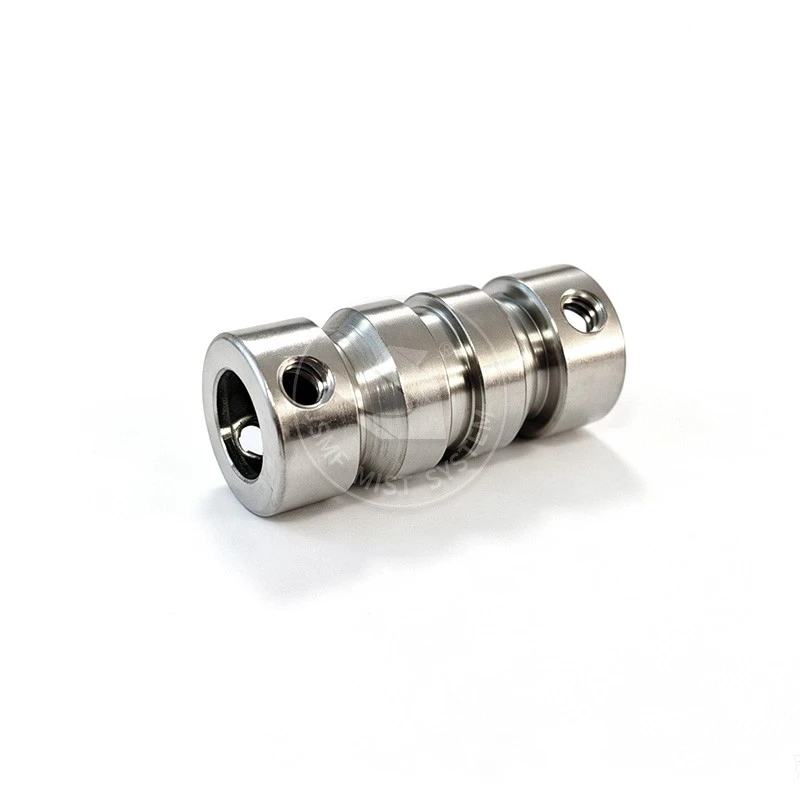

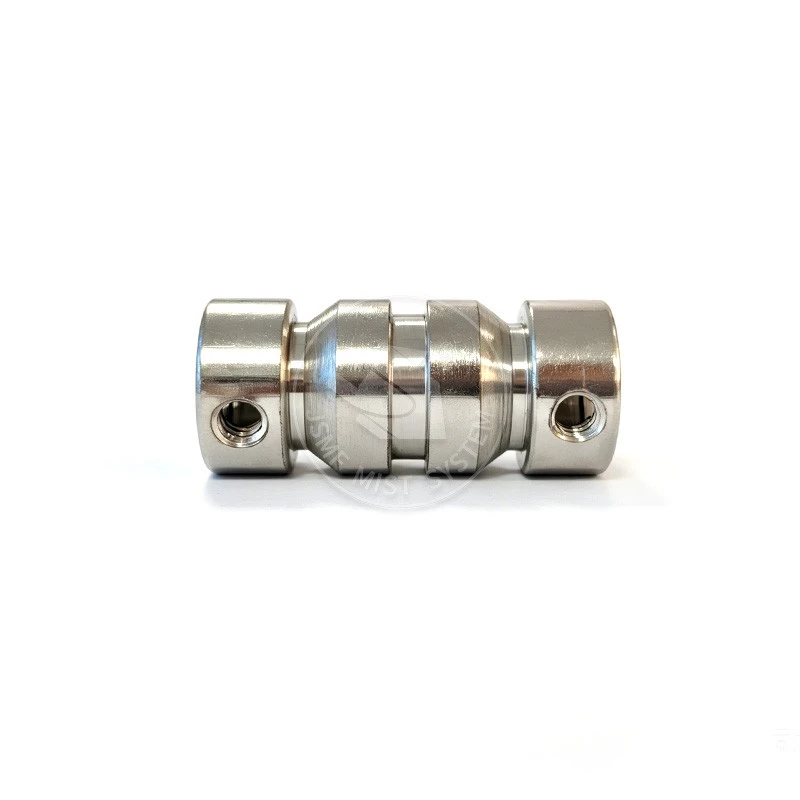

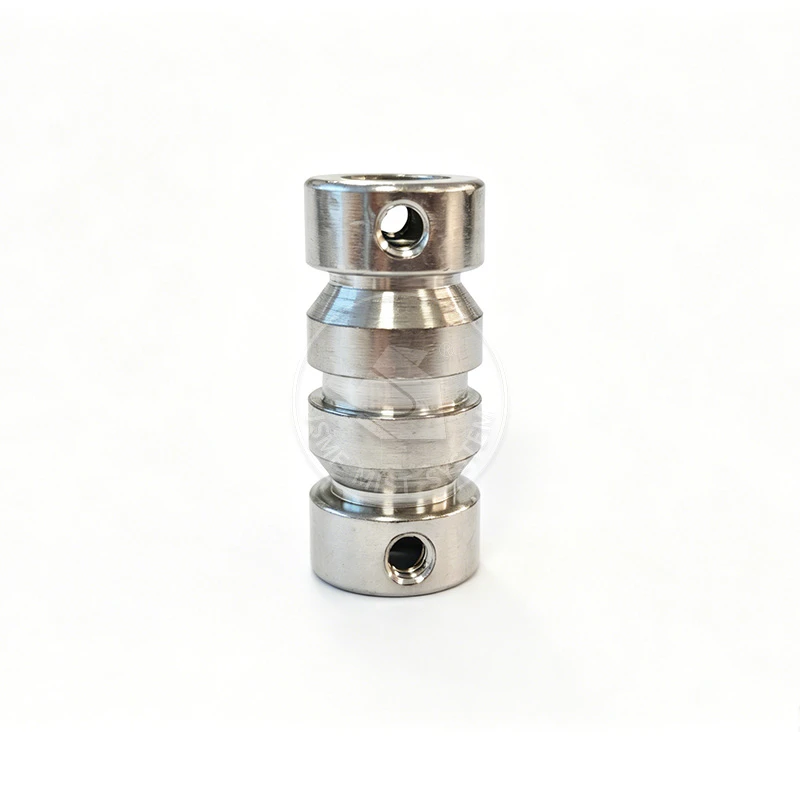

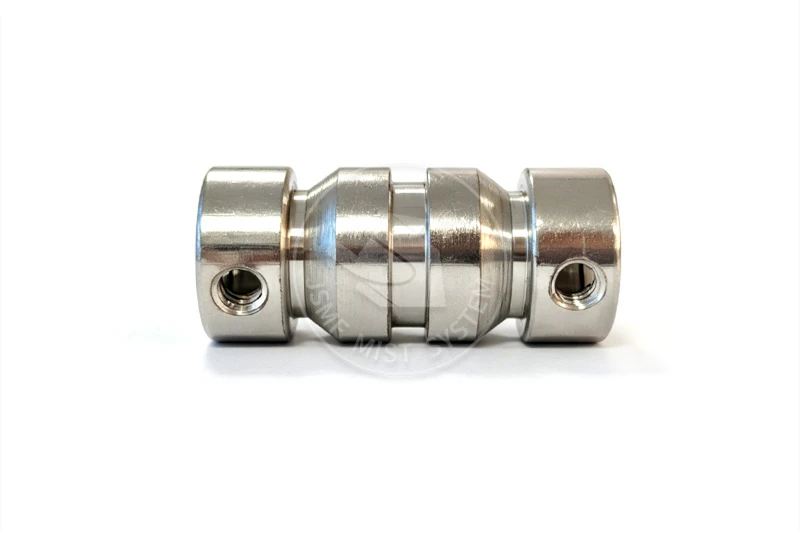

Mechanical Joint Coupling - Secure Pipe Connection & Repair Solution for High-Pressure Misting Systems

The Mechanical Joint Coupling represents Jinsheng Mist's engineered solution for joining pipe sections or repairing damaged lines in high-pressure misting installations without welding, threading, or specialized tools. This precision-machined fitting features a robust mechanical joint design that creates secure, leak-free connections at operating pressures up to 70 bar while accommodating slight pipe misalignment and thermal expansion. Designed for both new installations and maintenance applications, this mechanical coupling streamlines system assembly, reduces downtime during repairs, and delivers long-term reliability across residential, commercial, and industrial misting systems worldwide.

Product Features

Robust Mechanical Joint Design

Our mechanical pipe coupling utilizes a proven fastening architecture:

Dual-Side Mechanical Joints: Both ends feature secure mechanical grip for pipe retention

Full-Length Sleeve: Provides continuous support across the joint for added stability

Adjustable Clamping Range: Accommodates various pipe diameters (4mm to 12mm OD)

Vibration Dampening: EPDM or rubber gaskets absorb system vibration and water hammer

Premium Material Construction

The mechanical joint pipe connector is manufactured from durable materials:

304/316L Stainless Steel: Maximum corrosion resistance for harsh outdoor and industrial environments

Brass: Cost-effective option with good corrosion resistance for commercial applications

Hot-Dip Galvanized Steel: Budget-friendly choice with enhanced rust protection

UV-Resistant Polymer: Lightweight, non-conductive option for residential installations

Versatile Configuration Options

Equal Coupling: Both ports same diameter for consistent pipe runs

Reducing Coupling: Different port sizes for system transitions

Slip-Fix Coupling: Expandable design for repairing damaged pipe sections

Flanged Coupling: One end flanged for equipment or valve connection

Precision Engineering

Tight Tolerance Machining: Ensures consistent fit and secure grip across all connections

Smooth Internal Flow Path: Minimizes pressure drop at connection points

Burst Pressure Rating: Tested to 150+ bar for safety margin

Temperature Range: Stable performance from -20℃ to 80℃

Key Advantages

Secure, Leak-Free Connections
High-Pressure Rating: Suitable for misting systems up to 70 bar operating pressure

Dual Mechanical Grip: Both ends maintain secure hold under continuous system vibration

Thermal Stability: Accommodates pipe expansion and contraction without loosening

Dual O-Ring Sealing: Prevents drips and pressure loss at connection points
Rapid Installation & Repair

Tool-Efficient Assembly: Standard wrenches required-no specialty tools needed

No Welding or Threading: Eliminates need for hot work permits or pipe threading equipment

Adjustable On-Site: Fine-tune pipe position and alignment during installation

Emergency Repair Ready: Quickly replace damaged pipe sections without system drain-down
Long-Term Reliability
Corrosion Resistance: Premium materials withstand outdoor exposure and harsh environments

Minimal Maintenance: Once installed, requires only periodic visual inspection

Reusable Design: Can be removed and reinstalled during system modifications

Extended Service Life: 15+ years expected lifespan in standard conditions
Cost-Effective Solution
Reduced Labor Time: 50% faster installation compared to welded or threaded couplings

Lower Material Waste: Adjustable design accommodates field measurement variations

No Specialized Skills: General contractors can install without misting system expertise

Minimal Downtime: Quick replacement during maintenance or emergency repairs

Performance Specifications

Parameter	Specification
Operating Pressure	Up to 70 bar (tested to 150+ bar burst)
Pipe Compatibility	4mm, 6mm, 8mm, 10mm, 12mm OD (selectable)
Material Options	304 SS, 316L SS, Brass, Galvanized Steel, Polymer
Temperature Range	-20℃ to 80℃ (material dependent)
Connection Type	Mechanical joint (push-to-lock or clamp-style)
Flow Coefficient	Minimal pressure drop (<0.1 bar at rated flow)
Vibration Resistance	Tested to 10 Hz–1000 Hz frequency range
Certifications	CE, RoHS, ISO9001, NSF (drinking water option)

Application Scenarios

Industry	Application
Residential	Backyard misting systems, patio cooling, pool perimeter piping
Commercial	Outdoor restaurant cooling, shopping plaza misting, hotel grounds
Industrial	Factory workshop misting, warehouse dust control, loading dock systems
Agricultural	Greenhouse misting distribution, livestock cooling pipeline routing
Landscape	Water feature fogging, park cooling zones, garden display piping
Public Facilities	Bus stop cooling, pedestrian walkway misting, sports field sidelines

Technical Comparison

Feature	Mechanical Joint Coupling	Welded Coupling	Threaded Coupling
Installation Time	5–10 minutes	30–60 minutes	20–40 minutes
Tools Required	Standard wrenches	Welding equipment	Pipe threader, wrenches
Reusability	High	None	Low
Leak Resistance	Excellent (dual O-ring)	Good (weld dependent)	Moderate
Skill Level	Beginner	Professional	Intermediate
Total Installed Cost	Lowest	Highest	Moderate

Installation Guidelines

Pipe Preparation

Step	Action
1	Cut pipe square using pipe cutter or sharp blade
2	Deburr pipe end to remove any rough edges
3	Ensure pipe end is clean and free of debris
4	Mark insertion depth on pipe for verification

Installation Procedure

Inspect coupling for debris or damage before installation

Loosen mechanical joint clamps on both ends

Insert first pipe end until it bottoms out (check depth mark)

Tighten first clamp to specified torque (5–8 Nm typical)

Align second pipe and insert into opposite end

Tighten second clamp and verify alignment

Pressurize system and check for leaks at both connections

Torque Specifications

Pipe Size	Recommended Torque
4mm	3–5 Nm
6mm	4–6 Nm
8mm	5–7 Nm
10mm	6–8 Nm
12mm	7–10 Nm

Material Selection Guide

Material	Best For	Temperature Range	Corrosion Resistance	Cost
304 Stainless Steel	General outdoor, commercial	-20℃ to 80℃	High	Moderate
316L Stainless Steel	Coastal, chemical, industrial	-20℃ to 80℃	Very High	High
Brass	Indoor, protected outdoor	-10℃ to 60℃	Moderate	Low-Moderate
Galvanized Steel	Indoor, budget projects	-10℃ to 60℃	Moderate	Low
UV-Resistant Polymer	Residential, light commercial	-10℃ to 50℃	Good (non-corrosive)	Low

Maintenance Recommendations

Frequency	Task
Monthly	Visual inspection for leaks or pipe movement
Quarterly	Check clamp tightness and retorque if necessary
Semi-Annually	Inspect O-rings for wear or degradation
Annually	Replace any damaged or heavily corroded fittings

Common Configurations

Pipe Size	Type	Part Number	Material Options
4mm	Equal	MJC-4-E	SS, Brass, Polymer
6mm	Equal	MJC-6-E	SS, Brass, Polymer
8mm	Equal	MJC-8-E	SS, Brass, Steel
10mm	Equal	MJC-10-E	SS, Brass, Steel
12mm	Equal	MJC-12-E	SS, Steel
8mm×6mm	Reducing	MJC-86-R	SS, Brass
10mm×8mm	Reducing	MJC-108-R	SS, Brass
12mm×10mm	Reducing	MJC-1210-R	SS, Steel
6mm	Slip-Fix	MJC-SF6	SS, Brass
8mm	Slip-Fix	MJC-SF8	SS, Brass

Troubleshooting Guide

Issue	Possible Cause	Solution
Leak at connection	Pipe not fully inserted	Depressurize, disconnect, reinsert properly
Leak at connection	Damaged O-ring	Replace O-ring or entire coupling
Pipe slips out	Worn gripping teeth	Replace coupling fitting
Difficult insertion	Pipe not cut square	Recut pipe end square
Pressure drop	Debris in coupling	Clean or replace coupling

Conclusion

For misting system installations and repairs requiring reliable, rapidly deployable pipe connection solutions, the Mechanical Joint Coupling delivers unmatched convenience through its robust mechanical fastening design and leak-free dual O-ring sealing. With its versatile material options, comprehensive size range, and proven performance across residential, commercial, and industrial applications worldwide, this mechanical joint solution offers an ideal choice for contractors, facility managers, and system designers seeking to reduce installation time, minimize labor costs, and ensure long-term pipeline integrity-making it the preferred coupling for modern high-pressure misting system distribution networks where efficiency, reliability, and user-friendly installation are essential requirements.
