Jinsheng Mist Forest-High Pressure Mist System is one of the leading manufacturers and suppliers of snap-on pipe extension base in China. If you're going to wholesale cheap snap-on pipe extension base made in China, welcome to get free sample from our factory. All customized products are with high quality and low price.

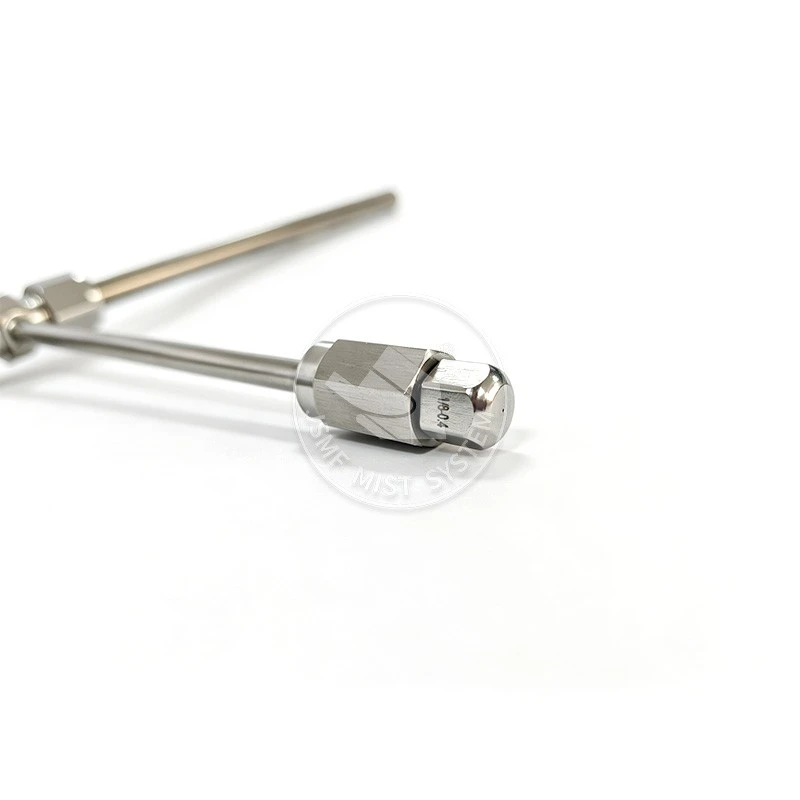

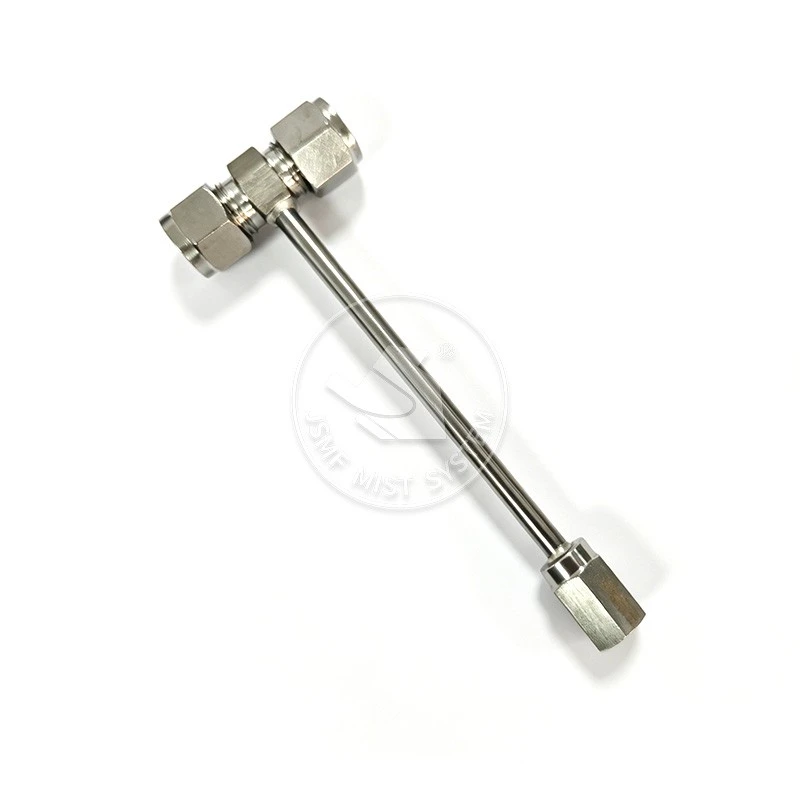

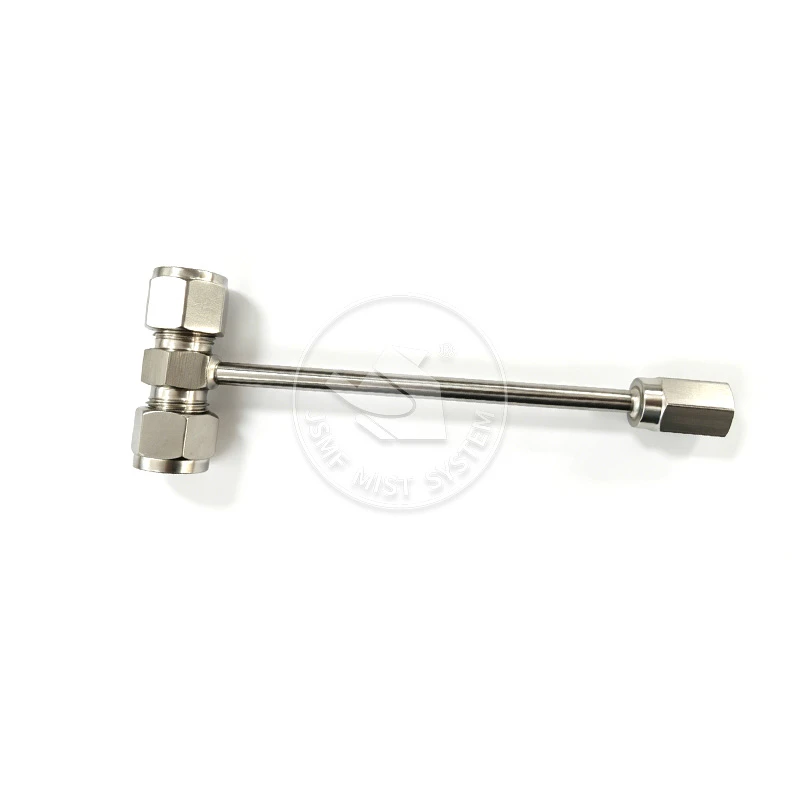

Snap-On Pipe Extension Base - Tool-Free Quick-Installation Elevated Pipe Support Solution for Misting Systems

The Snap-on pipe extension base represents Jinsheng Mist's innovative approach to rapid misting system installation, featuring a tool-free snap-lock mechanism that enables instant elevated pipe mounting without screws, clamps, or specialized equipment. This precision-engineered fitting allows technicians to secure high-pressure misting pipelines at elevated positions on walls, floors, or structures within seconds, significantly reducing installation time and labor costs while maintaining reliable support at operating pressures up to 70 bar. Designed for both residential and light commercial misting applications, this snap-on extension base streamlines system assembly, modification, and expansion processes across global installations.

Product Features

Tool-Free Snap-Lock Design

Our quick-mount extension base utilizes an innovative push-to-lock mechanism:

Snap-to-Secure: Simply press pipe into base until it clicks into place

Release Tab: Press tab to disconnect without tools for system modifications

Internal Gripping Ribs: Secure pipe hold under normal operating conditions

Elevated Mounting Plate: Provides clearance for insulation, uneven surfaces, or aesthetic positioning

Versatile Configuration Options

The snap-fit extension support is available in multiple configurations:

Wall Mount: Extended flat base plate for vertical surface installation with elevated pipe connection

Floor Mount: Pedestal-style base with anchor points for ground mounting

Clip-On Base: Attaches to existing fences, railings, or structures with elevated positioning

Multiple Heights: Extension columns available in 30mm, 50mm, 80mm, 100mm heights

Quality Material Construction

UV-Resistant Engineering Plastic: High-strength POM or nylon for standard residential applications

304/316L Stainless Steel: Maximum corrosion resistance for harsh outdoor and coastal environments

Galvanized Steel: Cost-effective option with enhanced rust protection

Rubber Insert Option: Dampens vibration and reduces noise transmission

Precision Engineering

Tight Tolerance Molding: Ensures consistent fit across all connections

Smooth Contact Surfaces: Prevents pipe damage during installation and operation

Pre-Drilled Mounting Holes: Standardized hole patterns for quick installation

Modular Design: Multiple bases can be linked for continuous elevated pipe support runs

Key Advantages

Rapid Installation

Tool-Free Assembly: No wrenches, screws, or specialty tools required for pipe attachment

70% Faster Installation: Compared to traditional clamped or screwed extension bases

Reduced Labor Costs: Significant time savings on large-scale residential projects

DIY-Friendly: Minimal training required for proper installation

Reliable Performance

Adequate Pressure Rating: Suitable for residential and light commercial systems up to 70 bar

Vibration Dampening: Rubber insert options absorb minor system vibration

Thermal Stability: Consistent performance across temperature variations (-10℃ to 60℃)

Quiet Operation: Plastic construction reduces noise transmission

Elevated Positioning Benefits

Surface Clearance: Provides space for insulation, roofing materials, or uneven surfaces

Improved Mist Distribution: Elevated nozzles achieve better coverage patterns

Aesthetic Installation: Cleaner appearance with hidden pipe runs beneath elevated supports

Reduced Obstruction: Pipes positioned away from walking surfaces and obstacles

Easy Maintenance & Modification

Quick Disconnection: Release tab enables fast pipe removal without cutting

System Expansion: Add branches or extend runs without specialized tools

Component Replacement: Swap sections without system drain-down

Reusability: Most bases can be reused multiple times for system reconfiguration

Cost-Effective Solution

Lower Installation Labor: Reduced time means lower project costs

Minimal Waste: No damaged pipes from over-tightened clamps

Inventory Simplification: Standardized fittings reduce spare parts complexity

Reduced Downtime: Faster modifications mean less system interruption

Performance Specifications

Parameter	Specification
Operating Pressure	Up to 70 bar (residential/light commercial)
Pipe Compatibility	4mm, 6mm, 8mm, 10mm OD (selectable)
Extension Height	30mm, 50mm, 80mm, 100mm (standard)
Material Options	POM, Nylon, 304 SS, 316L SS, Galvanized Steel
Mounting Type	Wall, Floor, Clip-On
Operating Temperature	-10℃ to 60℃ (material dependent)
Load Capacity	3–8 kg per base (depending on mounting type and height)
Vibration Resistance	Suitable for residential and light commercial
UV Resistance	Yes (UV-stabilized compounds for plastic)
Certifications	CE, RoHS, ISO9001

Application Scenarios

Industry	Application
Residential	Backyard misting systems, patio cooling, pool perimeter, elevated garden misting
Light Commercial	Small café patios, retail entrance misting, office building perimeters
Hospitality	Hotel pool areas, resort garden paths, outdoor seating zones
Landscape	Garden water features, park cooling zones, decorative misting displays
Public Facilities	Small bus stops, pedestrian walkways, waiting areas
Agricultural	Small greenhouse humidification, home garden irrigation

Technical Comparison

Feature	Snap-On Extension Base	Mechanical Joint Extension Base	Welded Extension Base
Installation Time	5–10 seconds per base	10–20 minutes	20–40 minutes
Tools Required	None (for pipe)	Standard wrenches	Welding equipment
Reusability	Very High	High	None
Vibration Resistance	Moderate	Good	Excellent
Skill Level	DIY/Beginner	Beginner	Professional
Cost per Base	Low	Moderate	High
Best For	Residential, DIY	Commercial	Industrial

Installation Guidelines

Surface Preparation

Step	Action
1	Select mounting location with adequate structural support
2	Clean surface of debris, dust, or loose material
3	Mark drilling holes using base plate as template
4	Pre-drill holes appropriate for anchor type (concrete, wood, brick)

Installation Procedure

Secure base to surface using appropriate anchors/screws (not included)

Open snap-lock mechanism (if applicable)

Press pipe firmly into base until audible click confirms lock

Tug gently to verify secure grip

Continue along pipe run, spacing bases 1–1.5 meters apart

Pressurize system and check for proper pipe support

Spacing Recommendations

Pipe Size	Maximum Spacing
4mm	0.8–1.0 meters
6mm	1.0–1.2 meters
8mm	1.2–1.5 meters
10mm	1.5–2.0 meters

Maintenance Recommendations

Frequency	Task
Monthly	Visual inspection for loose bases or pipe sagging
Quarterly	Check snap-lock mechanism for wear or damage
Semi-Annually	Inspect for UV degradation (plastic components)
Annually	Replace any damaged or worn bases

Material Selection Guide

Material	Best For	Temperature Range	Load Capacity	Cost
POM/Nylon	Residential, indoor/outdoor	-10℃ to 60℃	3–5 kg	Low
304 Stainless Steel	Commercial, outdoor	-20℃ to 80℃	5–8 kg	Moderate
316L Stainless Steel	Coastal, harsh environments	-20℃ to 80℃	5–8 kg	High
Galvanized Steel	Indoor, budget projects	-10℃ to 60℃	5–7 kg	Low-Moderate

Common Configurations

Pipe Size	Extension Height	Mounting Type	Part Number	Material Options
6mm	30mm	Wall	SPEB-6-30-W	POM, SS
8mm	30mm	Wall	SPEB-8-30-W	POM, SS
10mm	30mm	Wall	SPEB-10-30-W	POM, SS
6mm	50mm	Floor	SPEB-6-50-F	POM, SS
8mm	50mm	Floor	SPEB-8-50-F	POM, SS
10mm	50mm	Floor	SPEB-10-50-F	POM, SS
8mm	80mm	Wall	SPEB-8-80-W	SS
10mm	100mm	Floor	SPEB-10-100-F	SS

Troubleshooting Guide

Issue	Possible Cause	Solution
Pipe slips out	Not fully inserted	Depressurize, disconnect, reinsert properly
Base loose	Improper anchor installation	Reinstall with appropriate anchors
Pipe sagging	Insufficient base spacing	Add more supports between existing bases
Leak at connection	Damaged seal	Replace seal or entire base
Difficult insertion	Pipe not cut square	Recut pipe end square

Limitations & Considerations

Not Recommended For

High-vibration industrial environments

Heavy-duty commercial or industrial misting systems

Applications requiring structural-grade pipe support

Extreme temperature environments (below -10℃ or above 60℃)

Continuous 24/7 industrial operation

Best Suited For

Residential backyard misting systems

Light commercial patio cooling

DIY misting installations

Temporary or seasonal misting setups

Systems requiring frequent reconfiguration

Conclusion

For residential and light commercial misting system installations requiring rapid, tool-free elevated pipeline support, the Snap-on pipe extension base delivers unmatched convenience through its innovative snap-lock design and user-friendly installation. With its versatile material options, comprehensive height range, and proven performance across residential, hospitality, and light commercial applications worldwide, this quick-mount solution offers an ideal choice for homeowners, DIY enthusiasts, and contractors seeking to minimize installation time, reduce labor costs, and simplify system maintenance-making it the preferred foundation for residential and light-duty high-pressure misting system distribution networks where speed, ease of use, elevated positioning, and cost-effectiveness are essential requirements.
