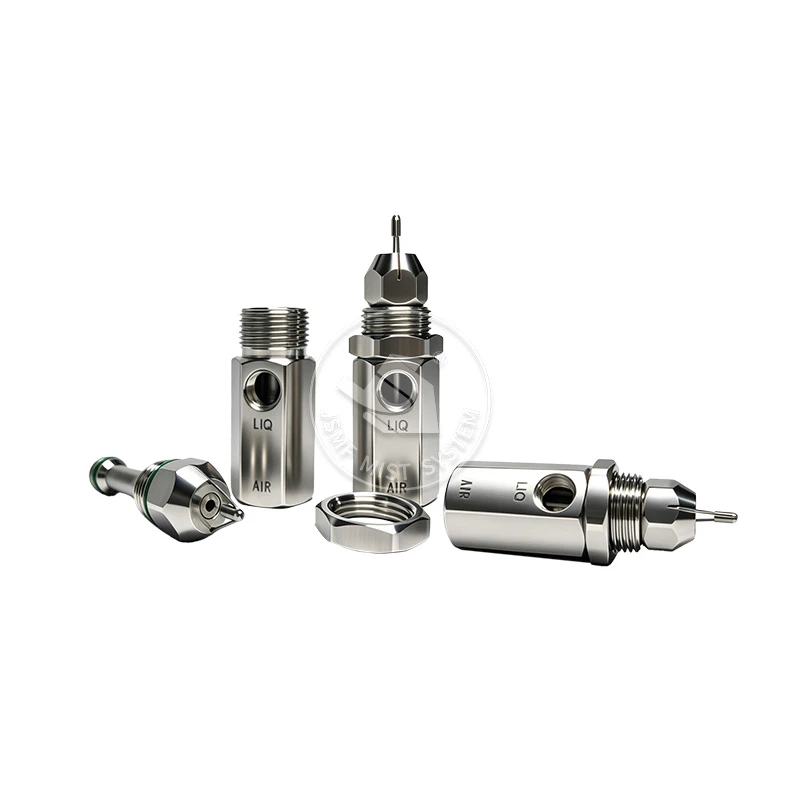

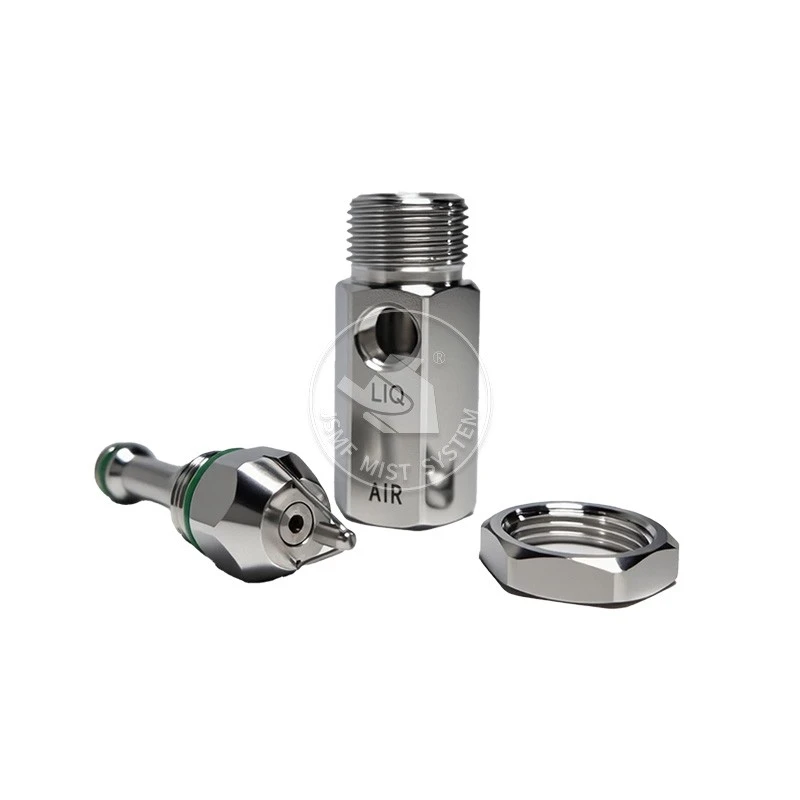

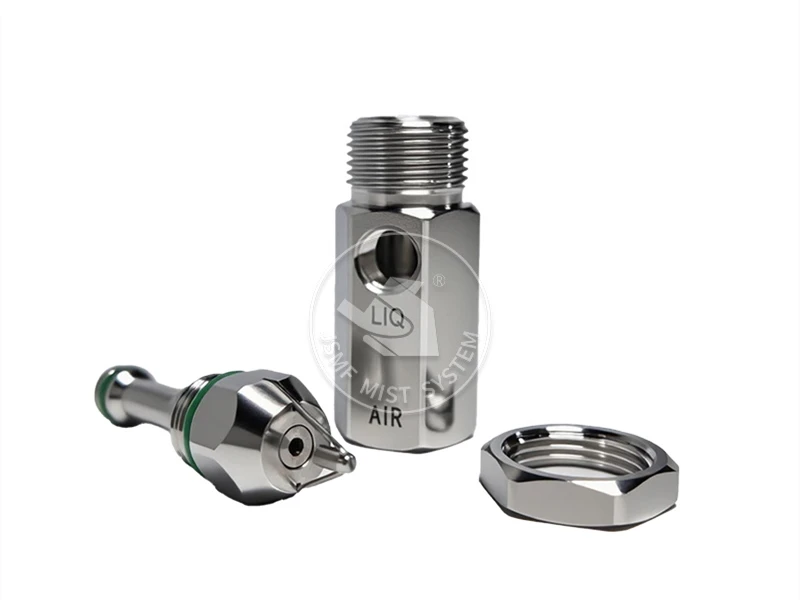

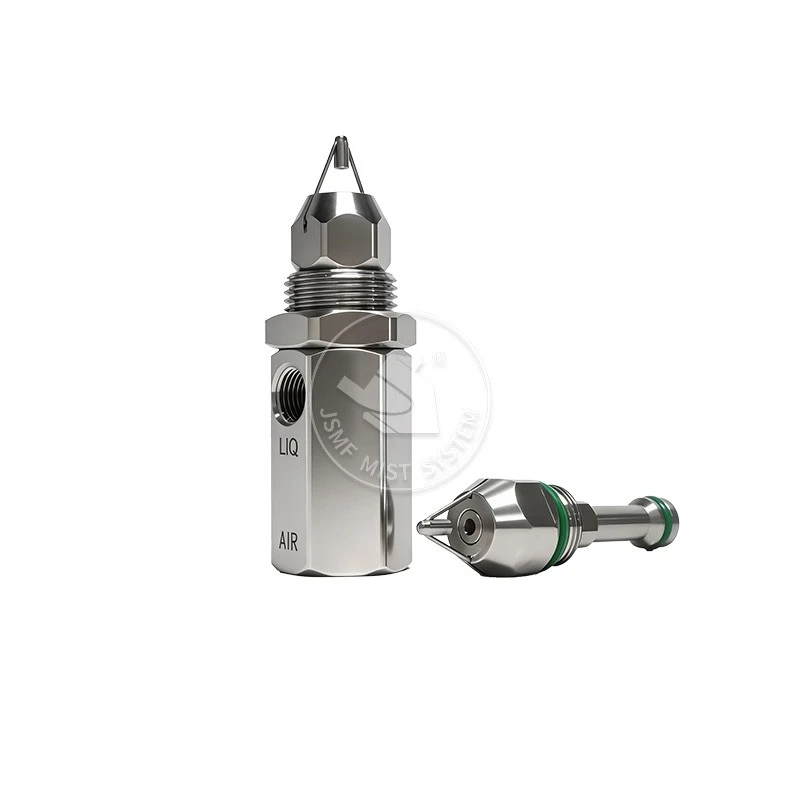

Two-Fluid Dedicated Spray Head - Precision Dual-Media Atomization Technology
The Two-fluid dedicated spray head represents Jinsheng Mist's specialized engineering solution for applications requiring ultra-fine mist generation through dual-media atomization. By combining compressed air and water within a precision-machined mixing chamber, this advanced nozzle produces exceptionally fine droplets ranging from 1–10 microns with superior control over mist density and spray pattern. Designed for industrial facilities, commercial environments, and specialized applications where conventional high-pressure water-only systems cannot achieve the required atomization quality, this dual-fluid technology delivers unmatched performance for precision humidification, gas cooling, chemical processing, and advanced dust suppression scenarios across global markets.
Dual-Media Atomization Architecture
Our dual-fluid misting nozzle utilizes a sophisticated two-media mixing process:
Air Channel: Compressed air (3–8 bar) enters through dedicated inlet
Water Channel: Pressurized water (2–5 bar) flows through separate pathway
Mixing Chamber: Internal convergence zone creates turbulent air-water interaction
Exit Orifice: Precision-machined aperture produces uniform ultra-fine mist
This dual-media approach achieves finer atomization than water-pressure-only systems while operating at significantly lower water pressures.
Precision Engineering Design
The air-assist spray nozzle features:
Independent Flow Controls: Separate adjustment for air and water flow rates
Optimized Mixing Geometry: Proprietary chamber design maximizes air-water interaction efficiency
Calibrated Exit Orifice: Precision-machined for consistent droplet formation across varying operating conditions
Anti-Clog Architecture: Larger water passages reduce blockage frequency compared to high-pressure nozzles
Premium Material Construction
The twin-fluid atomizing head is manufactured from high-grade materials:
304/316L Stainless Steel: Maximum corrosion resistance for harsh industrial environments
Hardened Internal Components: Wear-resistant surfaces extend service life under continuous operation
Chemical-Resistant Seals: Compatible with various water qualities and mild chemical additives
UV-Resistant External Housing: Suitable for prolonged outdoor exposure

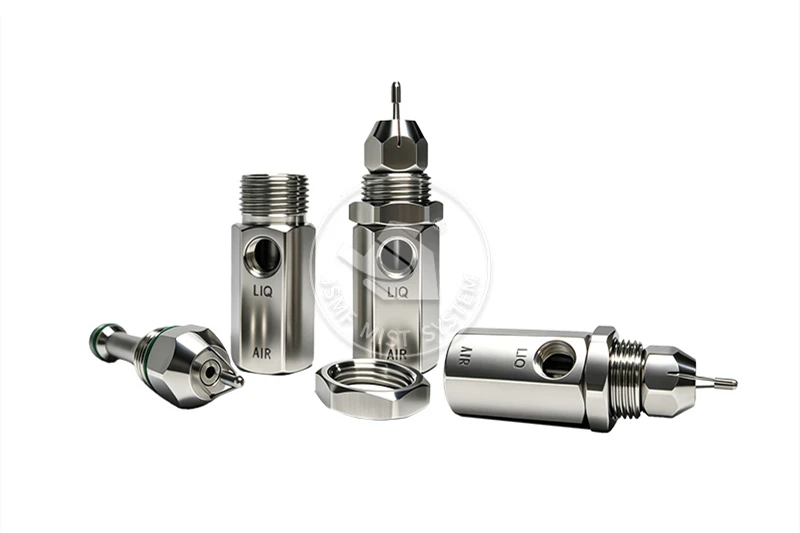

Versatile Configuration Options
● Multiple spray pattern selections (full cone, hollow cone, flat fan, directional)
● Various flow rate combinations for air and water
● Standard threaded connections (M6, 1/8", 1/4", 3/8")
● Compatible with standard compressed air and water supply systems
Key Advantages
Superior Atomization Quality
Droplet Size: 1–10 microns for instant evaporation and maximum surface area
Adjustable Mist Density: Control mist output by varying air-to-water ratio
Uniform Distribution: Consistent spray pattern across entire coverage area
Low Velocity Spray: Gentle mist delivery prevents disturbance of surrounding materials
Operational Flexibility
Lower Water Pressure: Operates effectively at 2–5 bar water pressure (vs. 50–70 bar for high-pressure nozzles)
Variable Flow Control: Independently adjust air and water for precise mist characteristics
Wide Operating Range: Maintains performance across varying supply pressures
Instant Response: Immediate mist generation and shutoff with no residual dripping
Energy Efficiency
Reduced Pump Requirements: Lower water pressure means smaller, more efficient pumps
Optimized Air Consumption: Efficient mixing design minimizes compressed air usage
Lower Total Energy Cost: Combined air and water energy consumption often less than high-pressure water-only systems
Scalable Operation: Add or remove nozzles without major system recalibration
Enhanced Application Versatility
|
Application |
Benefit |
|
Gas Cooling |
Rapid temperature reduction in ducts and chambers |
|
Precision Humidification |
Exact humidity control for sensitive environments |
|
Chemical Processing |
Efficient reagent mixing and reaction control |
|
Dust Suppression |
Ultra-fine mist captures sub-micron particulates |
|
Surface Coating |
Uniform application without runoff |
|
Odor Control |
Enhanced chemical distribution for neutralization |
Performance Specifications
|
Parameter |
Specification |
|
Water Operating Pressure |
2–5 bar |
|
Air Operating Pressure |
3–8 bar |
|
Droplet Size |
1–10 microns (adjustable via air/water ratio) |
|
Water Flow Rate |
0.05–0.5 L/min per nozzle (configurable) |
|
Air Consumption |
10–50 L/min per nozzle (configurable) |
|
Spray Pattern |
Full cone, hollow cone, flat fan, directional (selectable) |
|
Coverage Radius |
0.3–2 meters per nozzle |
|
Material |
304/316L Stainless Steel |
|
Connection Type |
M6, 1/8" NPT, 1/4" NPT, 3/8" NPT |
|
Operating Temperature |
-10℃ to 80℃ |
|
Service Life |
10,000+ hours (standard) |
|
Certifications |
CE, RoHS, ISO9001 |
Application Scenarios
|
Industry |
Application |
|
Industrial Manufacturing |
Steel mills, foundries, chemical plants, pharmaceutical facilities |
|
Power Generation |
Gas turbine inlet cooling, exhaust gas conditioning, boiler applications |
|
Waste Management |
Incinerator gas cooling, odor control, dust suppression |
|
HVAC |
Air handling unit humidification, duct cooling, air washing |
|
Agriculture |
Precision greenhouse climate control, mushroom farming, storage facilities |
|
Food Processing |
Cold storage humidification, processing area cooling, sanitation |
|
Chemical Processing |
Reactor cooling, gas scrubbing, reagent atomization |
|
Specialized Applications |
Clean room humidification, data center cooling, laboratory environments |
Global Project Deployments
European Steel Manufacturing Facility
Gas temperature reduction: 150℃ to 80℃ in 3 seconds
Water consumption: 40% lower than conventional water lances
Maintenance intervals: Extended from weekly to monthly
Middle East Power Plant
Deployed for gas turbine inlet cooling:
Inlet air temperature reduction: 8–12℃
Power generation efficiency improvement: 3.5%
System reliability: 99.8% uptime over 24 months
Asian Pharmaceutical Facility
Implemented for clean room humidification:
Humidity control accuracy: ±1.5%
Particle contamination: Zero increase from humidification system
Regulatory compliance: 100% adherence to GMP standards
North American Waste Incinerator
Used for exhaust gas conditioning:
Exhaust temperature control: ±5℃ precision
Acid gas neutralization efficiency: 92%+
Reagent consumption: 25% reduction vs. previous system
Installation Guidelines
System Compatibility
Water Supply: 2–5 bar pressure, filtered to 100 microns
Air Supply: 3–8 bar pressure, oil-free compressed air recommended
Flow Controls: Independent regulators for air and water recommended
Piping: Separate lines for air and water with shut-off valves
Piping Configuration
|
Component |
Recommendation |
|
Water Filter |
100-micron minimum, 50-micron preferred |
|
Air Filter |
Coalescing filter with oil removal |
|
Pressure Regulators |
Independent for air and water |
|
Flow Meters |
Optional for precise monitoring |
|
Solenoid Valves |
Quick-response for instant shutoff |
Maintenance Schedule
|
Frequency |
Task |
|
Daily |
Visual inspection for proper spray pattern |
|
Weekly |
Check air and water pressure settings |
|
Monthly |
Clean orifice and mixing chamber |
|
Quarterly |
Inspect seals and internal components |
|
Semi-Annually |
Replace worn components as needed |
|
Annually |
Full system inspection and performance audit |
Jinsheng Mist provides comprehensive system support:
Complete System Design: Air compressors, water pumps, control panels, and nozzle arrays
Control System Integration: PLC-compatible with automated air/water ratio control
Technical Documentation: CAD drawings, P&ID diagrams, installation manuals
Engineering Support: On-site commissioning and operator training available
Spare Parts: Full inventory of replacement components with fast delivery
Conclusion
For applications demanding ultra-fine mist generation with precise control over droplet size and spray characteristics, the Two-fluid dedicated spray head delivers unmatched performance through its innovative dual-media atomization technology. With its ability to produce 1–10 micron droplets at low water pressures, independent flow control for air and water, and proven success across diverse industrial applications worldwide, this specialized nozzle offers an ideal solution for precision humidification, gas cooling, chemical processing, and advanced dust suppression-making it the preferred choice for engineers and facility managers who require superior atomization quality that conventional high-pressure water-only systems simply cannot achieve.
