Jinsheng Mist Forest-High Pressure Mist System is one of the leading manufacturers and suppliers of butt weld pipe elbow in China. If you're going to wholesale cheap butt weld pipe elbow made in China, welcome to get free sample from our factory. All customized products are with high quality and low price.

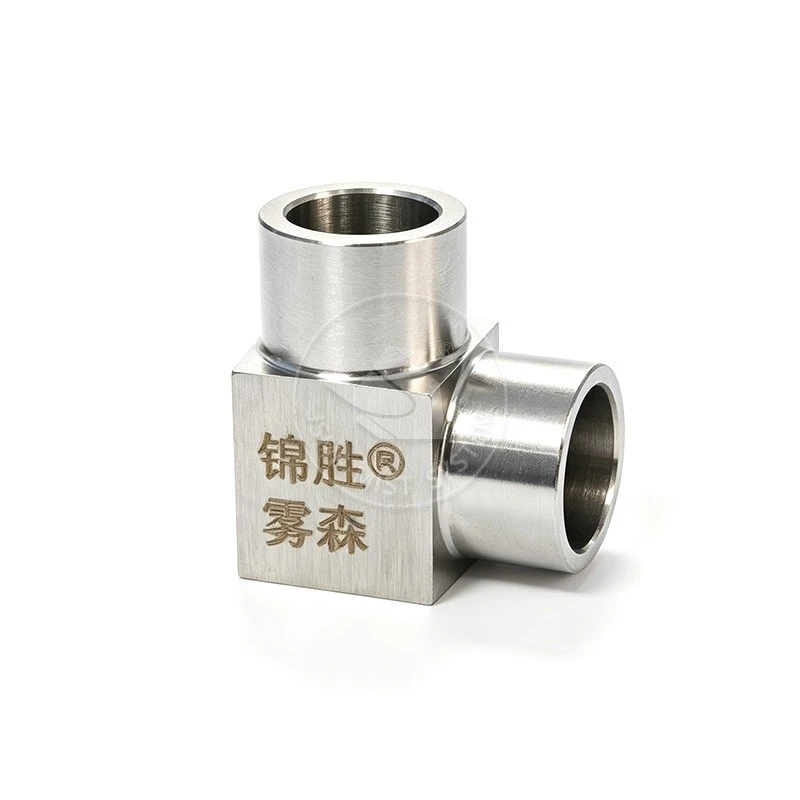

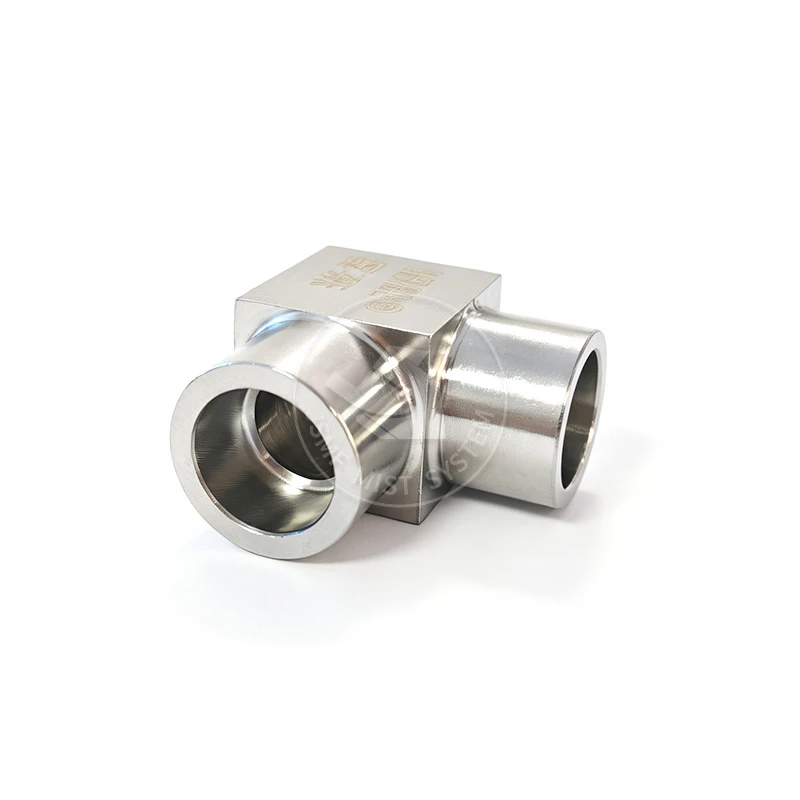

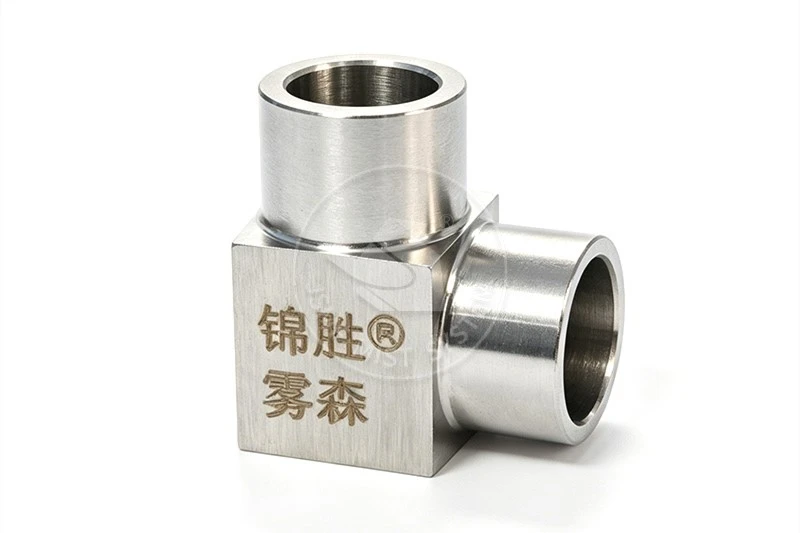

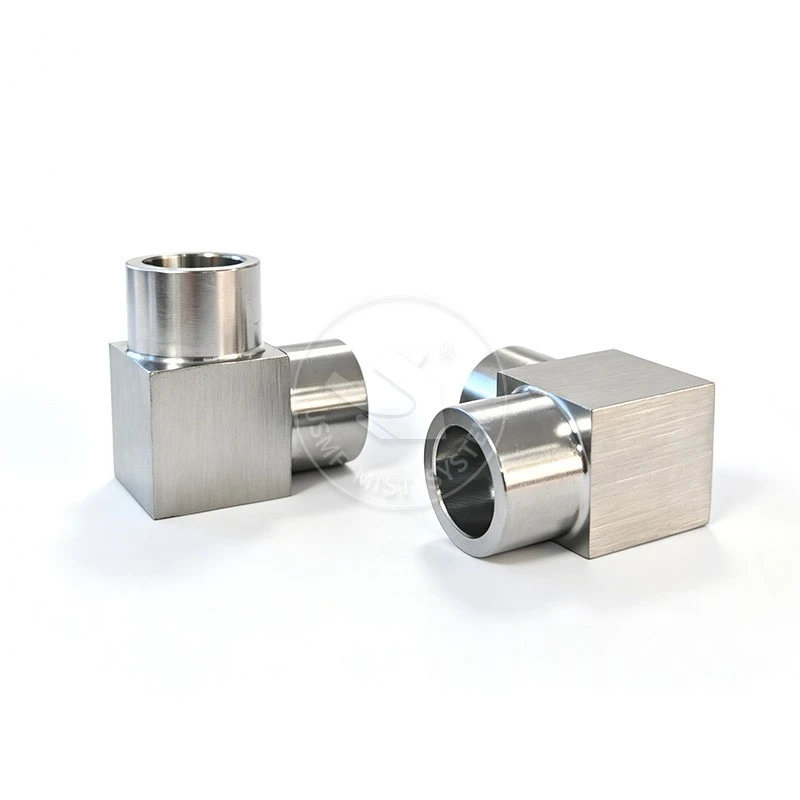

Butt Weld Pipe Elbow - Permanent High-Strength Directional Fitting for Industrial Misting Systems

The Butt Weld Pipe Elbow represents Jinsheng Mist's engineered solution for permanent, high-strength pipeline direction changes in high-pressure misting installations where maximum structural integrity and leak-free performance are critical. This precision-fabricated 90° or 45° fitting features a butt weld connection that creates a permanent, metallurgical bond at operating pressures up to 70 bar, making it ideal for industrial facilities, large-scale commercial installations, and applications requiring superior vibration resistance. Designed for professional welding installation, this welded elbow fitting delivers exceptional flow efficiency and structural permanence across demanding industrial and commercial misting systems worldwide.

Product Features

Robust Welded Design

Our welded elbow connector utilizes a permanent fastening architecture:

Butt Weld Connection: Full-penetration weld creates permanent, structural-grade bond at both ends

90° or 45° Angle Options: Standard configurations for most industrial pipeline routing requirements

Fixed Pipe Alignment: Once welded, provides rigid, non-adjustable pipe positioning

Vibration Resistance: Permanent welds eliminate movement under continuous system vibration

Premium Material Construction

The welded pipe elbow fitting is manufactured from durable materials:

304/316L Stainless Steel: Maximum corrosion resistance for harsh outdoor and industrial environments

Carbon Steel with Coating: Cost-effective option with powder coat or galvanized finish

Heavy-Gauge Construction: Thicker wall thickness compared to mechanical joint alternatives

Certified Welding Quality: All welds meet AWS or equivalent structural welding standards

Versatile Configuration Options

Equal Elbow: Both ports same diameter for consistent pipe runs

Reducing Elbow: Different port sizes for system transitions

Long-Radius Elbow: Gentler bend radius reduces pressure drop and erosion

Short-Radius Elbow: Compact design for tight space installations

Precision Fabrication

Tight Tolerance Manufacturing: Ensures consistent fit and alignment across all units

Smooth Internal Flow Path: Minimizes pressure drop and turbulence at directional changes

Professional Weld Finish: Smooth weld beads prevent stress concentrations and corrosion initiation

Load-Rated Design: Engineered to support specific pipe loads and system pressures

Key Advantages

Maximum Structural Integrity
High-Pressure Rating: Suitable for misting systems up to 70 bar operating pressure

Permanent Connection: Welded joints eliminate risk of loosening under vibration or thermal cycling

Superior Load Capacity: Supports heavy pipe runs without deformation or failure

Thermal Stability: Welded connection accommodates thermal expansion through proper pipe routing
Long-Term Reliability
Corrosion Resistance: Premium stainless steel materials withstand harsh environments

Zero Maintenance: Once installed, requires no retightening, adjustment, or gasket replacement

Extended Service Life: 25+ years expected lifespan in standard conditions

Fire Resistance: Welded steel construction provides superior fire rating vs. polymer or gasketed alternatives
Professional-Grade Performance
Vibration Proof: Permanent welds eliminate movement in high-vibration industrial settings

Leak-Free Connection: Full-penetration welds create metallurgical bond with no gaskets or seals

Code Compliant: Meets structural and pressure piping codes for industrial installations (ASME, AWS)

Customizable: Can be fabricated to specific project requirements and non-standard angles
Optimal Flow Efficiency
Smooth Internal Bore: Continuous flow path minimizes pressure drop and turbulence

Reduced Erosion: Long-radius options decrease wear from high-velocity water flow

Consistent Performance: No internal obstructions or flow restrictions

Lower Pump Requirements: Reduced pressure drop means smaller, more efficient pumps

Performance Specifications

Parameter	Specification
Operating Pressure	Up to 70 bar (tested to 150+ bar burst)
Pipe Compatibility	6mm, 8mm, 10mm, 12mm, 15mm, 20mm OD (custom sizes available)
Angle Options	90° (standard), 45° (optional), Custom angles on request
Material Options	304 SS, 316L SS, Carbon Steel (coated)
Temperature Range	-40℃ to 150℃ (material dependent)
Radius Type	Long-radius (1.5D), Short-radius (1.0D)
Flow Coefficient	Minimal pressure drop (<0.15 bar at rated flow)
Weld Standard	AWS D1.1 or equivalent, ASME B16.9
Corrosion Rating	Salt spray tested 1000+ hours (stainless steel)
Certifications	CE, RoHS, ISO9001, ASME (optional)

Application Scenarios

Industry	Application
Industrial	Factory workshop misting, steel mills, chemical plants, refineries
Commercial	Large shopping complexes, stadium misting, airport terminals
Power Generation	Power plant dust control, turbine inlet cooling, boiler systems
Mining	Mine facility misting, conveyor belt dust suppression, crushing plants
Marine	Shipyard misting, offshore platform cooling, port facilities
Infrastructure	Tunnel misting, bridge cooling, large public facilities
Oil & Gas	Refinery misting, petrochemical plant dust control, tank farm cooling

Technical Comparison

Feature	Butt Weld Pipe Elbow	Mechanical Joint Elbow	Threaded Elbow
Installation Time	15–30 minutes per elbow	5–10 minutes	20–40 minutes
Tools Required	Welding equipment, PPE	Standard wrenches	Pipe threader, wrenches
Reusability	None (permanent)	High	Low
Leak Resistance	Excellent (metallurgical bond)	Excellent (dual O-ring)	Moderate
Vibration Resistance	Excellent	Good	Moderate
Skill Level	Professional welder	Beginner	Intermediate
Long-Term Cost	Lowest	Moderate	Moderate
Best For	Permanent industrial	Residential/commercial	Light commercial

Installation Guidelines

Pre-Installation Preparation

Step	Action
1	Verify pipe alignment and support spacing before welding
2	Clean pipe ends and elbow bores of debris, oil, rust, or moisture
3	Bevel pipe ends to 30°–37.5° for proper weld penetration
4	Ensure proper fit-up with 1–3mm gap between pipe and elbow
5	Clamp or tack pipes in position before final welding

Installation Procedure

Position elbow between pipe sections with proper alignment

Tack weld at 2–4 points around circumference to hold position

Verify alignment and angle before proceeding with final welds

Complete root pass weld around entire circumference

Clean root pass and inspect for penetration

Complete filler and cap passes as required for wall thickness

Allow weld to cool naturally (do not quench with water)

Inspect weld for cracks, porosity, undercut, or incomplete penetration

Clean weld area and apply corrosion protection if required (carbon steel)

Pressurize system and check for leaks

Welding Specifications

Pipe Size	Wall Thickness	Weld Passes	Recommended Amperage
6mm	1mm	1 pass	60–80A
8mm	1.5mm	1–2 passes	80–100A
10mm	2mm	2 passes	100–120A
12mm	2.5mm	2–3 passes	120–140A
15mm	3mm	3 passes	140–160A
20mm	4mm	3–4 passes	160–180A

Quality Inspection Requirements

Inspection Type	Frequency	Method	Acceptance Criteria
Visual Inspection	100% of welds	Check for cracks, porosity, undercut	No visible defects
Dimensional Check	10% random	Verify angle and alignment	±2° tolerance
Dye Penetrant Test	5% random	Detect surface defects	No indication
Radiographic Test	1% random (critical applications)	X-ray inspection	ASME Section V
Pressure Test	100% of system	Hydrostatic test at 1.5× operating pressure	No leaks

Maintenance Recommendations

Frequency	Task
Monthly	Visual inspection for external corrosion or damage
Quarterly	Check pipe supports and anchor points
Semi-Annually	Inspect weld area for cracks or degradation
Annually	Full structural inspection and corrosion assessment
5 Years	Non-destructive testing for critical applications

Material Selection Guide

Material	Best For	Temperature Range	Corrosion Resistance	Cost
304 Stainless Steel	General industrial, outdoor	-40℃ to 150℃	High	Moderate
316L Stainless Steel	Coastal, chemical, marine	-40℃ to 150℃	Very High	High
Carbon Steel (Galvanized)	Indoor, protected environments	-20℃ to 100℃	Moderate	Low
Carbon Steel (Powder Coated)	Indoor, architectural	-10℃ to 80℃	Moderate	Low-Moderate
Duplex Stainless Steel	Extreme corrosion, high pressure	-40℃ to 200℃	Extremely High	Very High

Common Configurations

Pipe Size	Angle	Radius	Part Number	Material Options
6mm	90°	Long	BWE-6-90-LR	SS, Carbon
8mm	90°	Long	BWE-8-90-LR	SS, Carbon
10mm	90°	Long	BWE-10-90-LR	SS, Carbon
12mm	90°	Long	BWE-12-90-LR	SS, Carbon
15mm	90°	Long	BWE-15-90-LR	SS, Carbon
8mm	45°	Long	BWE-8-45-LR	SS, Carbon
10mm	45°	Long	BWE-10-45-LR	SS, Carbon
12mm	45°	Long	BWE-12-45-LR	SS, Carbon
10mm	90°	Short	BWE-10-90-SR	SS, Carbon
12mm	90°	Short	BWE-12-90-SR	SS, Carbon

Troubleshooting Guide

Issue	Possible Cause	Prevention/Solution
Weld crack	Improper cooling, wrong amperage	Allow natural cooling, follow welding specs
Porosity	Contaminated surface, moisture	Clean thoroughly, keep dry during welding
Incomplete penetration	Low amperage, fast travel speed	Increase amperage, slow down travel speed
Undercut	High amperage, wrong electrode angle	Reduce amperage, adjust electrode angle
Misalignment	Poor fit-up before welding	Use clamps, verify alignment before tack welds
Pressure drop	Debris in elbow, poor weld penetration	Flush system, inspect and repair welds

Conclusion

For industrial and large-scale commercial misting system installations requiring permanent, high-strength directional pipe fittings, the Butt Weld Pipe Elbow delivers unmatched structural integrity through its robust welded connection design and heavy-duty fabrication. With its premium material options, superior vibration resistance, optimal flow efficiency, and proven performance across demanding industrial, commercial, and infrastructure applications worldwide, this welded elbow fitting offers an ideal choice for professional contractors, engineering firms, and facility managers seeking to ensure long-term pipeline reliability with zero maintenance requirements-making it the preferred directional fitting for permanent high-pressure misting system installations where structural permanence, maximum pressure rating, and professional-grade performance are essential requirements.
