Jinsheng Mist Forest-High Pressure Mist System is one of the leading manufacturers and suppliers of industrial air humidifier unit in China. If you're going to wholesale cheap industrial air humidifier unit made in China, welcome to get free sample from our factory. All customized products are with high quality and low price.

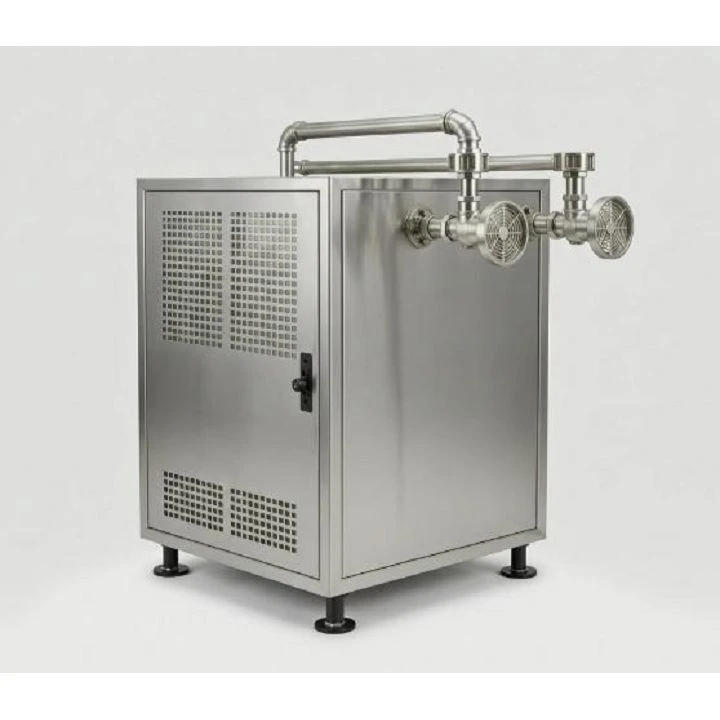

The Industrial Air Humidifier Unit is a packaged high-pressure misting system for controlled humidity management in production workshops, warehouses, greenhouses, and industrial processing areas.
Filtered water is pressurized to 50–70 bar and supplied through stainless steel piping to fine-atomizing nozzles. Typical droplets measure 5–15 μm, supporting rapid moisture dispersion and evaporation under suitable air temperature, airflow, and humidity conditions. System capacity is selected according to the required humidity level, room volume, ventilation conditions, active zones, and operating schedule.
How the Unit Works
Water Filtration: Incoming water passes through staged filtration to control suspended particles before entering the high-pressure circuit. Filtration specifications are selected according to source-water conditions and system requirements.
High-Pressure Pumping: A high-pressure pump raises the filtered water to the required operating pressure. Pump capacity is calculated from total nozzle flow and the number of zones operating at the same time.
Fine Atomization: Pressurized water flows through stainless steel distribution lines to precision atomizing nozzles. The system produces a typical droplet range of 5–15 μm for efficient moisture distribution.
Humidity Control: Humidity sensors provide operating feedback to the control system. The unit adjusts operation according to the configured humidity range, zone requirements, and operating schedule.
Technical Parameters
|
Parameter |
Specification |
|
Product Type |
Industrial Air Humidifier Unit |
|
Operating Pressure |
50–70 bar |
|
Typical Droplet Size |
5–15 μm |
|
Water Medium |
Filtered industrial water |
|
Atomization Method |
High-pressure water mist |
|
Pump Flow |
10–120 L/min |
|
Nozzle Quantity |
Project-specific |
|
Motor Power |
2.2–22 kW |
|
Control Configuration |
PLC with HMI / Zone-based control |
|
Humidification Capacity |
Project-specific |
|
Pipe Material |
Stainless steel |
|
Control Zones |
Project-specific |
Key Configuration Points
Pump Flow Sizing: Pump flow is calculated from nozzle discharge, operating pressure, and simultaneous zone demand. This establishes the required water supply for the complete misting network.
Nozzle Layout Planning: Nozzle quantity, spacing, orientation, and mounting height are determined from room geometry, ceiling clearance, equipment positions, and airflow direction.
Water Condition Analysis: Source-water quality is reviewed before filtration components are selected. Water characteristics influence filter configuration, piping materials, nozzle selection, and maintenance intervals.
Control Method Integration: Control settings are matched to target relative humidity, operating hours, zone schedules, and available facility control interfaces.
Application Areas
Production Workshops
Provides controlled moisture distribution for manufacturing areas where stable humidity supports material handling, process conditions, and static electricity management.
Warehouses
Maintains defined humidity conditions in designated storage areas for moisture-sensitive materials, products, and packaging.
Greenhouses
Distributes fine water mist across growing areas as part of an integrated humidity management system. Air circulation and ventilation conditions are considered during system design.
Processing Areas
Supplies controlled moisture to enclosed and semi-enclosed processing spaces where humidity levels form part of the required environmental conditions.
Selection Guide
Define the Space
Provide floor dimensions, ceiling height, layout drawings, equipment locations, and the zones requiring humidity control.
Set the Humidity Target
Specify the required relative humidity range, control tolerance, and expected ambient temperature range for each operating area.
Review Airflow
Provide ventilation rates, exhaust arrangements, air circulation equipment, and airflow patterns. These factors affect mist distribution and evaporation.
Confirm Utilities
Confirm water supply pressure, source-water quality, electrical voltage, available power, and expected operating hours before equipment sizing.
Manufacturing and Quality Control
Component Processing: Structural and piping components are cut, formed, machined, and welded according to approved production drawings and dimensional requirements.
System Assembly: The pump, filtration system, control panel, high-pressure fittings, and related components are assembled into a complete packaged unit.
Functional Testing: Each completed unit is checked for pump operation, pressure stability, water flow, control response, and connection integrity before shipment.
Procurement Information
Site Information
Provide installation drawings, ceiling height, room dimensions, humidity requirements, and the number of independent humidification zones.
Utility Information
Confirm water source conditions, electrical voltage, available power, connection requirements, and expected daily operating hours.
Operating Information
Define humidity setpoints, zone control requirements, operating schedules, and the preferred control sequence for the facility.
Installation and Maintenance
System Installation: Connect the unit to the water supply, electrical system, and high-pressure stainless steel misting network according to the approved installation layout.
Filter Inspection: Inspect filter elements according to water quality and operating hours. Timely service helps maintain stable water flow and nozzle performance.
Nozzle Maintenance: Check nozzle orifices during scheduled maintenance and clean them according to the operating environment and water conditions to maintain consistent atomization.
Pump Servicing: Inspect pump oil levels, seals, fittings, and operating pressure at scheduled service intervals based on the duty cycle and operating conditions.
Why This Unit Fits Industrial Humidification
Fine Water Distribution: The 5–15 μm droplet range supports rapid moisture dispersion and evaporation when system design, airflow, temperature, and humidity conditions are properly matched.
Matched System Capacity: Pump flow and humidification capacity are calculated from the required moisture load, nozzle configuration, operating zones, and site conditions.
Zoned Humidification: Independent control zones allow different facility areas to operate according to their individual humidity requirements and production schedules.
Site-Based Configuration: Pump capacity, nozzle quantity, piping arrangement, filtration, and control functions are selected according to the actual facility layout and operating conditions.
FAQ
Q: What is an Industrial Air Humidifier Unit?
A: It is a packaged high-pressure misting system designed to introduce finely atomized water into industrial areas for controlled humidity management.
Q: What pressure does the unit operate at?
A: The standard operating pressure range is 50–70 bar. Final pressure selection depends on nozzle specifications, water flow, and system configuration.
Q: What droplet size does the system produce?
A: The typical droplet size is 5–15 μm. Actual droplet characteristics vary with nozzle configuration, operating pressure, and water conditions.
Q: How is the system sized for a facility?
A: System sizing considers target relative humidity, room volume, ceiling height, temperature, ventilation, airflow, water conditions, nozzle demand, and operating zones.
Q: What project details are required for equipment selection?
A: Key information includes room dimensions, ceiling height, layout drawings, target humidity, ambient conditions, water source data, electrical supply, and operating schedule.
Q: Can the misting layout be customized for different room shapes?
A: Yes. Pump flow, nozzle quantity, piping routes, mounting positions, and control zones can be configured according to the facility layout and required humidity distribution.
