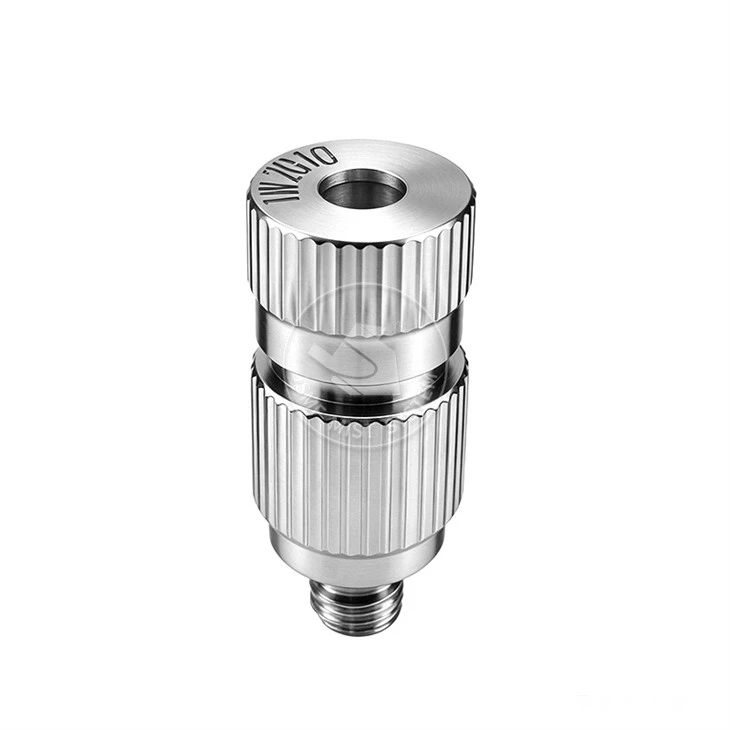

Dual Orifice Swirl Nozzle - Advanced Dual-Stream Atomization Technology for Precision Misting Applications
The Dual Orifice Swirl Nozzle represents Jinsheng Mist's innovative engineering approach to dual-stream water atomization, featuring two independent swirl chambers that produce parallel mist streams within a single nozzle body. This precision-machined fitting creates consistent, uniform mist patterns with droplet sizes ranging from 5–20 microns at operating pressures of 50–70 bar, making it ideal for applications requiring wider coverage or dual-direction misting without additional piping. Designed for industrial dust control, commercial cooling, and specialized landscape fogging, this dual-orifice nozzle delivers enhanced coverage efficiency and installation flexibility across demanding misting systems worldwide.
Dual-Stream Swirl Design
Our twin-orifice atomizing nozzle utilizes two parallel swirl chambers:
Independent Swirl Chambers: Two separate internal swirl paths create parallel mist streams
Adjustable Spray Angles: Each orifice can be configured for different spray patterns (30° to 90°)
Synchronized Flow: Balanced pressure distribution ensures uniform output from both orifices
Interchangeable Orifice Inserts: Replaceable swirl inserts for maintenance or pattern changes
Premium Material Construction
The dual-port swirl sprayer is manufactured from high-grade materials:
304/316L Stainless Steel: Maximum corrosion resistance for harsh outdoor and industrial environments
Ceramic Insert Option: Enhanced durability for abrasive water conditions
Ruby Orifice Available: Ultra-premium option for continuous industrial operation
UV-Resistant Housing: Suitable for prolonged outdoor exposure
Versatile Configuration Options
Equal Orifice: Both ports same diameter for symmetric spray patterns
Reducing Orifice: Different port sizes for varied flow rates per stream
Adjustable Angle: Rotatable orifice inserts allow custom spray direction
Standard Threaded Connections: M5, M6, 1/8", 1/4" for easy installation
Precision Engineering
Tight Tolerance Machining: Ensures consistent flow balance between both orifices
Smooth Internal Flow Paths: Minimizes pressure drop and turbulence
Anti-Clog Architecture: Self-flushing design reduces blockage frequency
Burst Pressure Rating: Tested to 150+ bar for safety margin
-
Enhanced Coverage Efficiency
- Dual-Stream Output: Two mist streams cover wider area than single-orifice nozzles
- Reduced Nozzle Count: Fewer nozzles needed for equivalent coverage
- Uniform Distribution: Balanced flow ensures consistent mist density across both streams
- Flexible Positioning: Single installation point serves two coverage zones
-
Superior Atomization Quality
- Droplet Size: 5–20 microns for effective evaporation without surface wetting
- Consistent Spray Pattern: Uniform mist density across entire dual-stream coverage
- Controlled Spray Trajectory: Minimizes drift and unwanted water dispersion
- Instant Fog Effect: Creates immediate visible mist upon activation
-
Cost-Effective Installation
- Reduced Component Count: Fewer nozzles, fittings, and pipe runs required
- Lower Labor Costs: Faster installation with fewer mounting points
- Simplified Piping: Single feed line serves dual output streams
- Minimal Maintenance: Two streams from one nozzle means fewer components to service
-
Long-Term Reliability
- Corrosion Resistance: Premium materials withstand harsh environments
- Wear Resistance: Distributed flow reduces wear on individual orifice components
- Temperature Tolerance: Stable performance from -20℃ to 80℃
- Extended Service Life: 10,000+ hours (standard), 20,000+ hours (ruby orifice)
Performance Specifications
|
Parameter |
Specification |
|
Operating Pressure |
50–70 bar (optimal: 55–65 bar) |
|
Droplet Size |
5–20 microns |
|
Flow Rate |
0.1–0.6 L/min per nozzle (combined output) |
|
Spray Angle |
30°, 45°, 60°, 90° per orifice (selectable) |
|
Coverage Width |
1–4 meters (dual-stream combined) |
|
Material |
304/316L Stainless Steel, Ceramic, Ruby (optional) |
|
Connection Type |
M5, M6, 1/8" NPT, 1/4" NPT |
|
Operating Temperature |
-20℃ to 80℃ |
|
Service Life |
10,000+ hours (standard), 20,000+ hours (ruby) |
|
Certifications |
CE, RoHS, ISO9001 |
Application Scenarios
|
Industry |
Application |
|
Industrial |
Steel mills, cement plants, chemical processing, conveyor belt dust control |
|
Commercial |
Outdoor restaurants, shopping plazas, stadium seating areas |
|
Agriculture |
Greenhouse humidification, livestock cooling, mushroom farming |
|
Landscape |
Wide-area garden misting, dual-sided water feature fogging |
|
Public Facilities |
Bus stop cooling, pedestrian walkway misting, queue area comfort |
|
Waste Management |
Landfill dust control, recycling facilities, transfer stations |
Technical Comparison
|
Feature |
Dual Orifice Swirl Nozzle |
Single Swirl Nozzle |
Triple Swirl Nozzle |
|
Droplet Size |
5–20 microns |
10–30 microns |
3–20 microns |
|
Coverage |
Dual-stream (wider) |
Single stream |
Single stream (finer) |
|
Operating Pressure |
55–65 bar optimal |
55–65 bar |
45–60 bar optimal |
|
Nozzle Count Required |
Fewer (dual output) |
More |
More |
|
Installation Complexity |
Simplified |
Standard |
Standard |
|
Unit Cost |
Moderate |
Low |
Moderate-High |
|
Best For |
Wide-area coverage |
Standard applications |
Precision atomization |
Installation Guidelines
Pipe Preparation
|
Step |
Action |
|
1 |
Cut pipe square using pipe cutter or sharp blade |
|
2 |
Deburr pipe end to remove any rough edges |
|
3 |
Ensure pipe end is clean and free of debris |
|
4 |
Mark insertion depth on pipe for verification |
Installation Procedure
Inspect nozzle for debris or damage before installation
Verify orifice inserts are properly seated and aligned
Apply thread sealant or PTFE tape to threaded connection
Install nozzle into pipe fitting or manifold
Tighten to specified torque (5–8 Nm typical)
Adjust orifice angles for desired spray direction
Pressurize system and check for leaks
Verify both streams produce uniform mist patterns
Spacing Recommendations
|
Application |
Nozzle Spacing |
|
Industrial Dust Control |
1–2 meters |
|
Outdoor Cooling |
2–3 meters |
|
Greenhouse Humidification |
2–4 meters |
|
Landscape Fogging |
1.5–2.5 meters |
Maintenance Recommendations
|
Frequency |
Task |
|
Weekly |
Visual inspection for proper spray pattern on both streams |
|
Monthly |
Clean orifice inserts and check for clogging |
|
Quarterly |
Inspect swirl chambers for wear or mineral buildup |
|
Semi-Annually |
Replace worn orifice inserts as needed |
|
Annually |
Full nozzle inspection and flow rate verification |
Material Selection Guide
|
Material |
Best For |
Temperature Range |
Corrosion Resistance |
Cost |
|
304 Stainless Steel |
General industrial, outdoor |
-20℃ to 80℃ |
High |
Moderate |
|
316L Stainless Steel |
Coastal, chemical, marine |
-20℃ to 80℃ |
Very High |
High |
|
Ceramic Insert |
Abrasive water, high wear |
-20℃ to 100℃ |
High |
Moderate-High |
|
Ruby Orifice |
Continuous industrial operation |
-20℃ to 120℃ |
Extremely High |
High |
Common Configurations
|
Orifice Size |
Spray Angle |
Part Number |
Material Options |
|
0.10mm |
60° |
DOSN-010-60 |
SS, Ceramic, Ruby |
|
0.15mm |
60° |
DOSN-015-60 |
SS, Ceramic, Ruby |
|
0.20mm |
60° |
DOSN-020-60 |
SS, Ceramic, Ruby |
|
0.10mm |
90° |
DOSN-010-90 |
SS, Ceramic, Ruby |
|
0.15mm |
90° |
DOSN-015-90 |
SS, Ceramic, Ruby |
|
0.20mm |
90° |
DOSN-020-90 |
SS, Ceramic, Ruby |
|
0.15mm |
Adjustable |
DOSN-015-ADJ |
SS, Ruby |
Troubleshooting Guide
|
Issue |
Possible Cause |
Solution |
|
Uneven flow between orifices |
Clogged orifice insert |
Clean or replace insert |
|
One stream not spraying |
Blocked flow channel |
Disassemble and clean nozzle |
|
Poor atomization |
Low pressure, worn orifice |
Increase pressure to 55+ bar, replace orifice |
|
Leaking at connection |
Loose fitting, damaged threads |
Tighten or replace nozzle |
|
Irregular spray pattern |
Debris in swirl chamber |
Clean swirl chambers thoroughly |
Conclusion
For misting system applications requiring wide-area coverage with simplified installation and reduced component count, the Dual Orifice Swirl Nozzle delivers exceptional value through its innovative dual-stream atomization technology and flexible spray configuration. With its premium material options, balanced flow distribution, and proven performance across industrial, commercial, and landscape applications worldwide, this dual-orifice solution offers an ideal choice for contractors, facility managers, and system designers seeking to maximize coverage efficiency while minimizing installation complexity and long-term maintenance costs-making it the preferred nozzle for modern high-pressure misting systems where wide-area coverage, installation efficiency, and reliable dual-stream performance are essential requirements.
