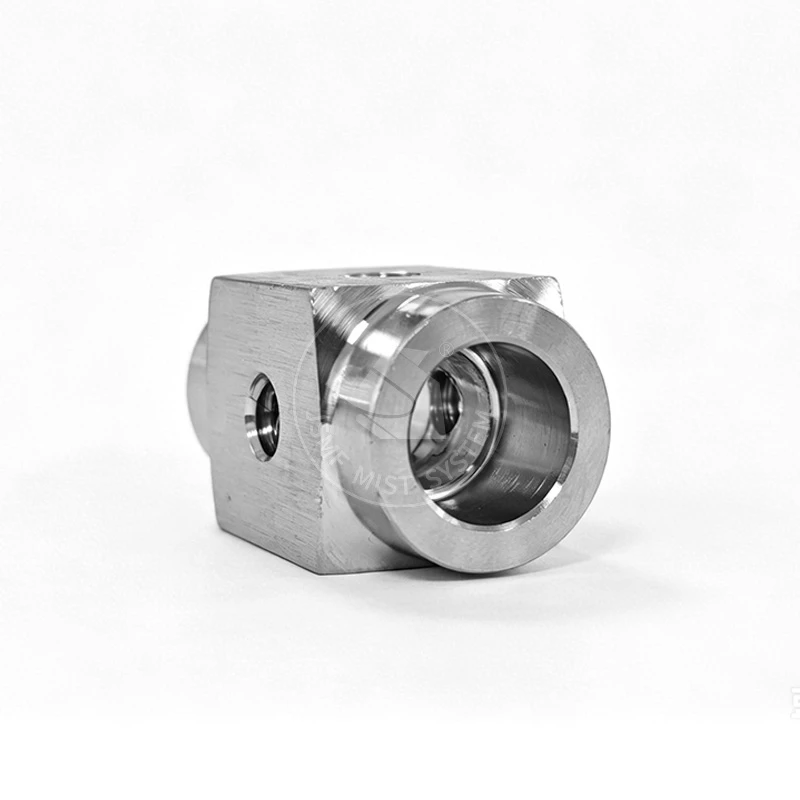

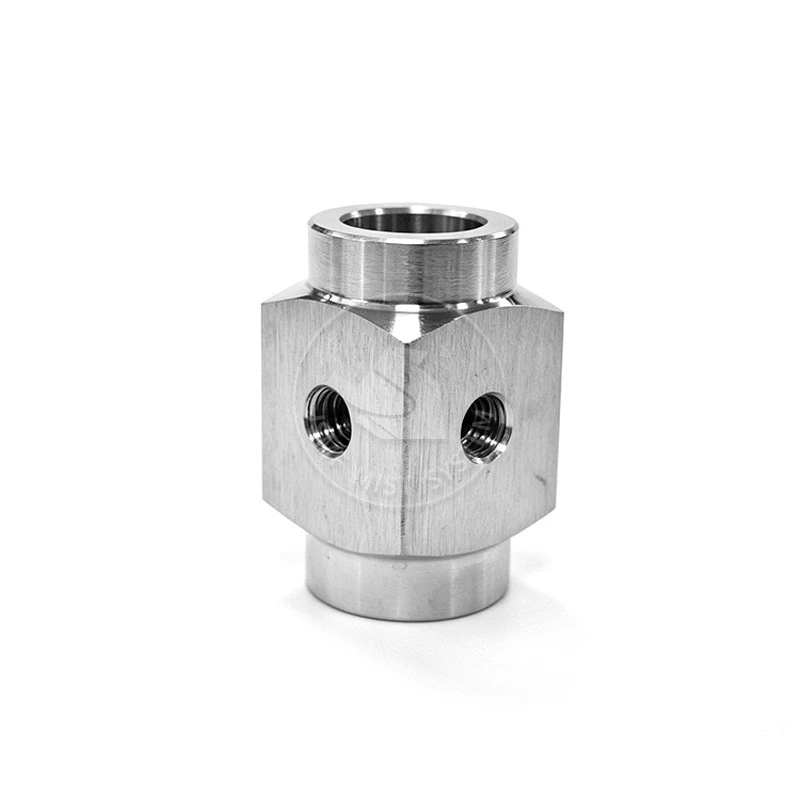

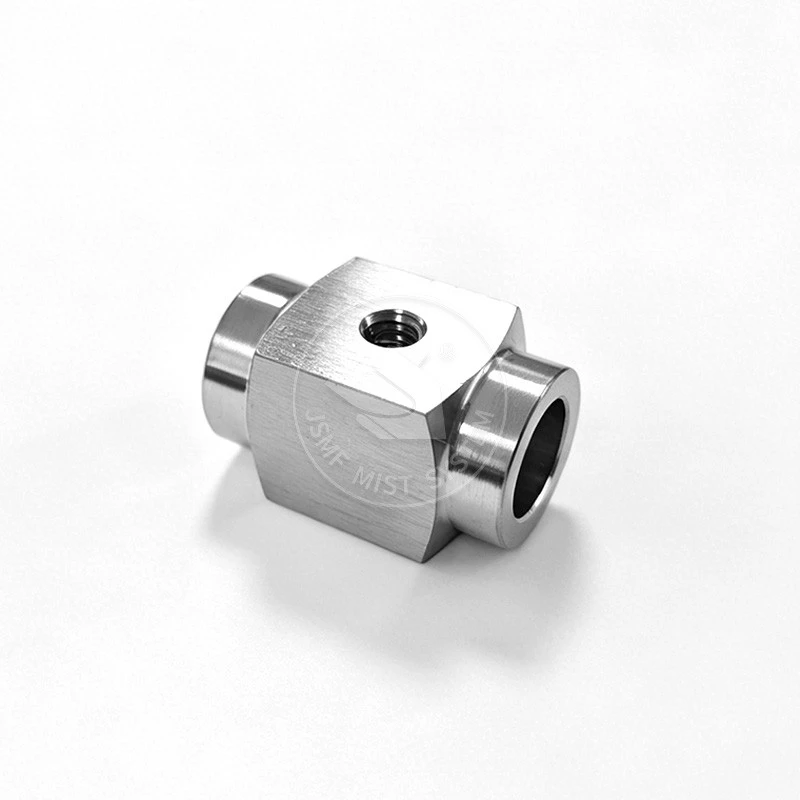

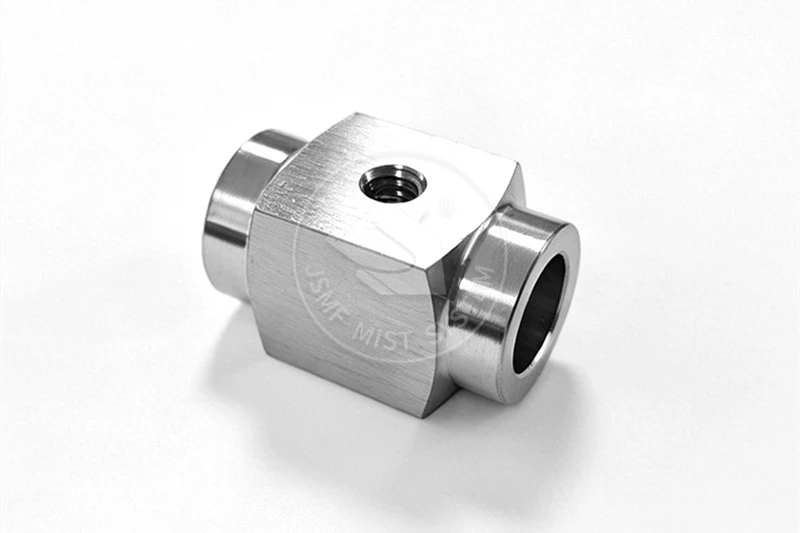

Butt Weld Pipe Base - Permanent High-Strength Pipeline Support Solution
The Butt Weld Pipe Base represents Jinsheng Mist's engineered solution for permanent, high-strength pipeline support in high-pressure misting installations where maximum stability and structural integrity are paramount. This precision-fabricated fitting features a butt weld connection that creates a permanent, leak-free bond at operating pressures up to 70 bar, making it ideal for industrial facilities, large-scale commercial installations, and applications requiring vibration resistance and long-term reliability. Designed for professional welding installation, this welded pipe base delivers exceptional load-bearing capacity and structural permanence across demanding industrial and commercial misting systems worldwide.
Robust Welded Design
Our welded pipe support base utilizes a permanent fastening architecture:
Butt Weld Connection: Full-penetration weld creates permanent, structural-grade bond
Reinforced Base Plate: Thick steel plate with multiple anchor points for maximum stability
Fixed Pipe Alignment: Once welded, provides rigid, non-adjustable pipe positioning
Vibration Resistance: Permanent weld eliminates movement under continuous system vibration
Premium Material Construction
The welded pipe mounting base is manufactured from durable materials:
304/316L Stainless Steel: Maximum corrosion resistance for harsh outdoor and industrial environments
Carbon Steel with Coating: Cost-effective option with powder coat or galvanized finish
Heavy-Gauge Construction: Thicker wall thickness compared to mechanical joint alternatives
Certified Welding Quality: All welds meet AWS or equivalent structural welding standards
Versatile Mounting Options
Wall Mount: Flat base plate for vertical surface installation with welded pipe connection
Floor Mount: Elevated pedestal base with anchor bolt holes for concrete mounting
Beam Mount: Custom fabrication for attachment to structural steel beams
Custom Angles: Can be fabricated for specific pipe routing requirements
Precision Fabrication
Tight Tolerance Manufacturing: Ensures consistent fit and alignment across all units
Smooth Weld Beads: Professional weld finish prevents stress concentrations
Pre-Drilled Mounting Holes: Standardized hole patterns for quick field installation
Load-Rated Design: Engineered to support specific pipe loads and spans
-
Maximum Structural Integrity
- High-Pressure Rating: Suitable for misting systems up to 70 bar operating pressure
- Permanent Connection: Welded joint eliminates risk of loosening under vibration
- Superior Load Capacity: Supports heavy pipe runs without sagging or deformation
- Thermal Stability: Welded connection accommodates thermal expansion through base flexibility
-
Long-Term Reliability
- Corrosion Resistance: Premium stainless steel materials withstand harsh environments
- Zero Maintenance: Once installed, requires no retightening or adjustment
- Extended Service Life: 25+ years expected lifespan in standard conditions
- Fire Resistance: Welded steel construction provides superior fire rating vs. polymer alternatives
-
Professional-Grade Performance
- Vibration Proof: Permanent weld eliminates movement in high-vibration industrial settings
- Leak-Free Connection: Full-penetration weld creates metallurgical bond with no gaskets
- Code Compliant: Meets structural and pressure piping codes for industrial installations
- Customizable: Can be fabricated to specific project requirements
-
Cost-Effective for Large Projects
- Lower Long-Term Cost: Eliminates maintenance and replacement costs over system lifetime
- Bulk Installation Efficiency: Professional welders can install multiple units rapidly
- Reduced Component Count: Fewer parts compared to mechanical joint systems
- Minimal Downtime: Once installed, no future maintenance shutdowns required
Performance Specifications
|
Parameter |
Specification |
|
Operating Pressure |
Up to 70 bar |
|
Pipe Compatibility |
6mm, 8mm, 10mm, 12mm, 15mm OD (custom sizes available) |
|
Material Options |
304 SS, 316L SS, Carbon Steel (coated) |
|
Mounting Type |
Wall, Floor, Beam, Custom |
|
Temperature Range |
-40℃ to 150℃ (material dependent) |
|
Load Capacity |
10–50 kg per base (depending on design) |
|
Vibration Resistance |
Tested to 5 Hz–2000 Hz frequency range |
|
Weld Standard |
AWS D1.1 or equivalent |
|
Corrosion Rating |
Salt spray tested 1000+ hours (stainless steel) |
|
Certifications |
CE, RoHS, ISO9001, ASME (optional) |
Application Scenarios
|
Industry |
Application |
|
Industrial |
Factory workshop misting, steel mills, chemical plants, refineries |
|
Commercial |
Large shopping complexes, stadium misting, airport terminals |
|
Power Generation |
Power plant dust control, turbine inlet cooling systems |
|
Mining |
Mine facility misting, conveyor belt dust suppression |
|
Marine |
Shipyard misting, offshore platform cooling systems |
|
Infrastructure |
Tunnel misting, bridge cooling, large public facilities |
Technical Comparison
|
Feature |
Butt Weld Pipe Base |
Mechanical Joint Base |
Threaded Base |
|
Installation Time |
15–30 minutes per base |
5–10 minutes |
20–40 minutes |
|
Tools Required |
Welding equipment, PPE |
Standard wrenches |
Pipe threader, wrenches |
|
Reusability |
None (permanent) |
High |
Low |
|
Vibration Resistance |
Excellent |
Good |
Moderate |
|
Skill Level |
Professional welder |
Beginner |
Intermediate |
|
Long-Term Cost |
Lowest |
Moderate |
Moderate |
|
Best For |
Permanent industrial |
Residential/commercial |
Light commercial |
Installation Guidelines
Pre-Installation Preparation
|
Step |
Action |
|
1 |
Verify structural support capacity at mounting location |
|
2 |
Clean surface of debris, rust, oil, or loose material |
|
3 |
Mark drilling holes using base plate as template |
|
4 |
Pre-drill holes for anchor bolts (concrete or steel) |
|
5 |
Ensure pipe is properly aligned before welding |
Installation Procedure
Position base at marked location and secure with anchor bolts
Align pipe with base socket, ensuring proper fit-up
Tack weld pipe to base at 2–3 points to hold position
Verify alignment and adjust if necessary before final welding
Complete full-penetration butt weld around entire circumference
Allow weld to cool naturally (do not quench)
Inspect weld for cracks, porosity, or incomplete penetration
Clean weld area and apply corrosion protection if required
Pressurize system and check for leaks
Welding Specifications
|
Pipe Size |
Weld Passes |
Recommended Amperage |
|
6mm |
1 pass |
60–80A |
|
8mm |
1–2 passes |
80–100A |
|
10mm |
2 passes |
100–120A |
|
12mm |
2–3 passes |
120–140A |
|
15mm |
3 passes |
140–160A |
Quality Inspection Requirements
|
Inspection Type |
Frequency |
Method |
|
Visual Inspection |
100% of welds |
Check for cracks, porosity, undercut |
|
Dimensional Check |
10% random |
Verify alignment and positioning |
|
Dye Penetrant Test |
5% random |
Detect surface defects |
|
Pressure Test |
100% of system |
Hydrostatic test at 1.5× operating pressure |
Maintenance Recommendations
|
Frequency |
Task |
|
Monthly |
Visual inspection for corrosion or damage |
|
Quarterly |
Check anchor bolt tightness |
|
Semi-Annually |
Inspect weld area for cracks or degradation |
|
Annually |
Full structural inspection and corrosion assessment |
Material Selection Guide
|
Material |
Best For |
Temperature Range |
Corrosion Resistance |
Cost |
|
304 Stainless Steel |
General industrial, outdoor |
-40℃ to 150℃ |
High |
Moderate |
|
316L Stainless Steel |
Coastal, chemical, marine |
-40℃ to 150℃ |
Very High |
High |
|
Carbon Steel (Galvanized) |
Indoor, protected environments |
-20℃ to 100℃ |
Moderate |
Low |
|
Carbon Steel (Powder Coated) |
Indoor, architectural |
-10℃ to 80℃ |
Moderate |
Low-Moderate |
Conclusion
For industrial and large-scale commercial misting system installations requiring permanent, high-strength pipeline support, the Butt Weld Pipe Base delivers unmatched structural integrity through its robust welded connection design and heavy-duty construction. With its premium material options, superior vibration resistance, and proven performance across demanding industrial, commercial, and infrastructure applications worldwide, this welded pipe base offers an ideal choice for professional contractors, engineering firms, and facility managers seeking to ensure long-term pipeline stability with zero maintenance requirements-making it the preferred foundation for permanent high-pressure misting system installations where structural permanence, maximum load capacity, and professional-grade performance are essential requirements.
