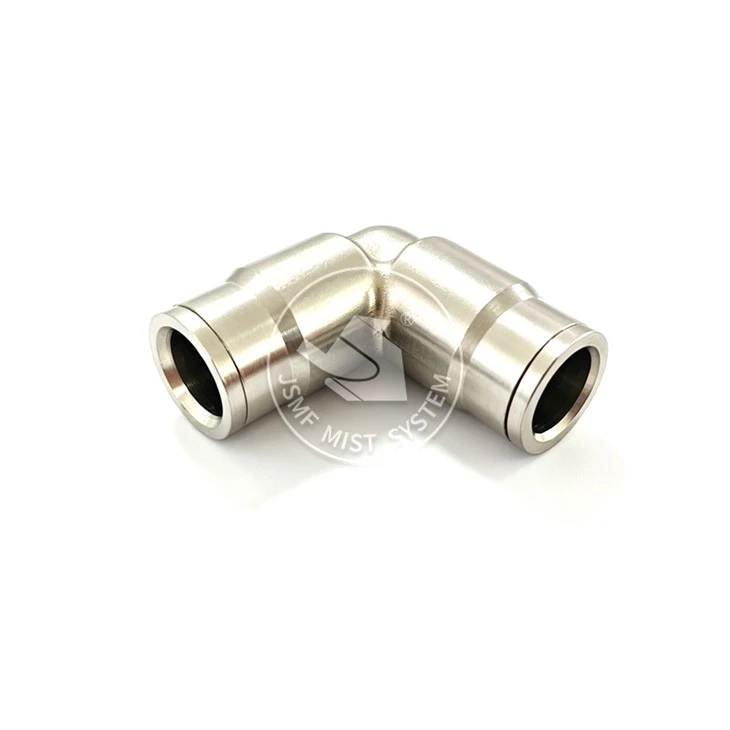

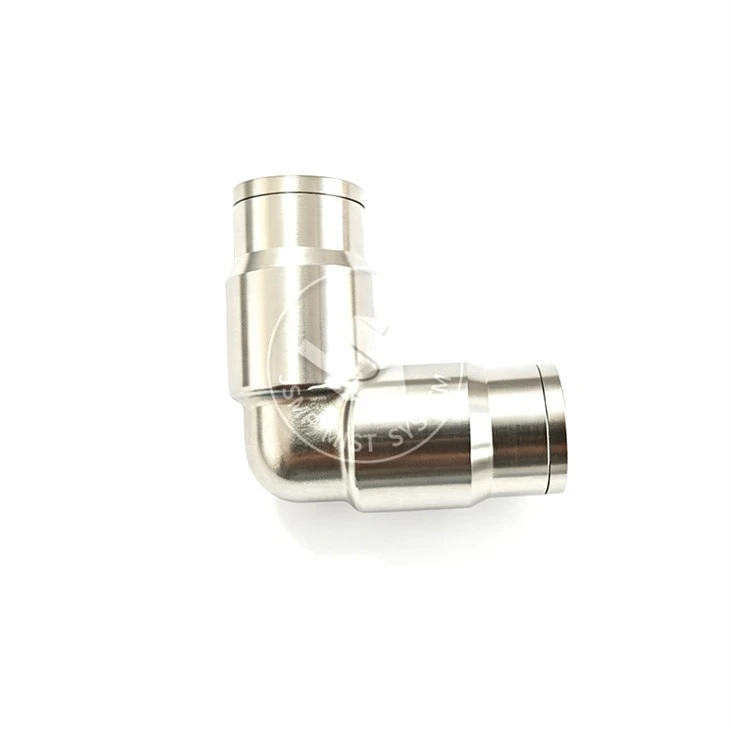

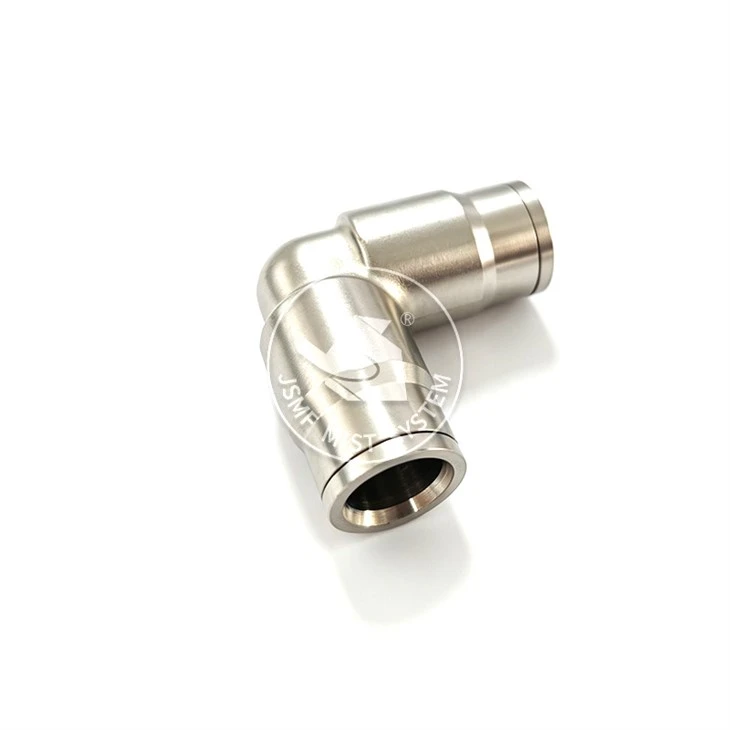

Quick-Connect Pipe Elbow - Tool-Free Quick-Installation Directional Fitting for Misting Systems
The Quick-connect pipe elbow represents Jinsheng Mist's innovative approach to rapid misting system installation, featuring a tool-free quick-connect mechanism that enables instant 90° or 45° pipe direction changes without screws, clamps, or specialized equipment. This precision-engineered fitting allows technicians to create secure corner connections in high-pressure misting pipelines within seconds, significantly reducing installation time and labor costs while maintaining reliable performance at operating pressures up to 70 bar. Designed for both residential and commercial misting applications, this quick-connect elbow streamlines system assembly, modification, and expansion processes across global installations.
Tool-Free Quick-Connect Design
Our rapid-connect elbow fitting utilizes an innovative push-to-lock mechanism:
Push-to-Lock: Simply insert pipe until it clicks into place
Release Collar: Press collar to disconnect without tools for system modifications
Internal Gripping Teeth: Secure pipe hold on both ends under normal operating conditions
Dual-End Connection: Both ports feature quick-connect mechanism for rapid installation
Versatile Configuration Options
The quick-install pipe elbow is available in multiple configurations:
90° Elbow: Standard right-angle configuration for most corner applications
45° Elbow: Gentler angle for gradual pipe direction changes
Equal Elbow: Both ports same diameter for consistent pipe runs
Reducing Elbow: Different port sizes for system transitions (e.g., 8mm to 6mm)
Quality Material Construction
UV-Resistant Engineering Plastic: High-strength POM or nylon for standard residential applications
304/316L Stainless Steel: Maximum corrosion resistance for harsh outdoor and industrial environments
Brass: Cost-effective option with good corrosion resistance for commercial use
Rubber Seal Insert: Dual seals on each port ensure leak-free connection and dampen vibration
Precision Engineering
Tight Tolerance Molding: Ensures consistent fit across both connections
Smooth Internal Flow Path: Minimizes pressure drop at directional changes
Pre-Lubricated Seals: Factory-applied lubricant for easy pipe insertion
Burst Pressure Rating: Tested to 150+ bar for safety margin
-
Rapid Installation
- Tool-Free Assembly: No wrenches, screws, or specialty tools required for pipe attachment
- 70% Faster Installation: Compared to traditional threaded or compression elbows
- Reduced Labor Costs: Significant time savings on large-scale projects
- DIY-Friendly: Minimal training required for proper installation
-
Reliable Performance
- Adequate Pressure Rating: Suitable for residential and light commercial systems up to 70 bar
- Leak-Free Connection: Dual rubber seals on each port prevent drips and pressure loss
- Thermal Stability: Consistent performance across temperature variations (-20℃ to 80℃)
- Quiet Operation: Plastic construction reduces noise transmission
-
Easy Maintenance & Modification
- Quick Disconnection: Release collar enables fast pipe removal without cutting
- System Reconfiguration: Change pipe routing without specialized tools
- Component Replacement: Swap sections without system drain-down
- Reusability: Most elbows can be reused 5–10 times for system reconfiguration
-
Cost-Effective Solution
- Lower Installation Labor: Reduced time means lower project costs
- Minimal Waste: No damaged pipes from over-tightened fittings
- Inventory Simplification: Standardized fittings reduce spare parts complexity
- Reduced Downtime: Faster modifications mean less system interruption
Performance Specifications
|
Parameter |
Specification |
|
Operating Pressure |
Up to 70 bar (tested to 150+ bar burst) |
|
Pipe Compatibility |
4mm, 6mm, 8mm, 10mm, 12mm OD (selectable) |
|
Angle Options |
90° (standard), 45° (optional) |
|
Material Options |
POM, Nylon, 304 SS, 316L SS, Brass |
|
Operating Temperature |
-20℃ to 80℃ (material dependent) |
|
Flow Coefficient |
Minimal pressure drop (<0.2 bar at rated flow) |
|
Load Capacity |
3–8 kg per elbow (depending on material) |
|
UV Resistance |
Yes (UV-stabilized compounds for plastic) |
|
Certifications |
CE, RoHS, ISO9001 |
Application Scenarios
|
Industry |
Application |
|
Residential |
Backyard misting systems, patio cooling, pool perimeter, garden corners |
|
Light Commercial |
Small café patios, retail entrance misting, office building perimeters |
|
Hospitality |
Hotel pool areas, resort garden paths, outdoor seating zones |
|
Landscape |
Garden water features, park cooling zones, decorative misting displays |
|
Public Facilities |
Small bus stops, pedestrian walkways, waiting areas |
|
Agricultural |
Small greenhouse humidification, home garden irrigation systems |
Technical Comparison
|
Feature |
Quick-Connect Pipe Elbow |
Mechanical Joint Elbow |
Threaded Elbow |
|
Installation Time |
5–10 seconds per elbow |
5–10 minutes |
20–40 minutes |
|
Tools Required |
None |
Standard wrenches |
Pipe threader, wrenches |
|
Reusability |
Very High (5–10 times) |
High |
Low |
|
Leak Resistance |
Good (dual seals) |
Excellent (O-ring) |
Moderate |
|
Skill Level |
DIY/Beginner |
Beginner |
Intermediate |
|
Cost per Elbow |
Low |
Moderate |
Low-Moderate |
|
Best For |
Residential, DIY |
Commercial |
Light commercial |
Installation Guidelines
Pipe Preparation
|
Step |
Action |
|
1 |
Cut pipe square using pipe cutter or sharp blade |
|
2 |
Deburr pipe end to remove any rough edges |
|
3 |
Ensure pipe end is clean and free of debris |
|
4 |
Mark insertion depth on pipe for verification |
Installation Procedure
Inspect elbow for debris or damage before installation
Open quick-connect mechanism on first port (if applicable)
Insert first pipe end until audible click confirms lock
Tug gently to verify secure grip
Route pipe around corner and insert second end
Verify both connections are secure
Pressurize system and check for leaks
Spacing Recommendations
|
Application |
Elbow Spacing |
|
Residential Cooling |
1–1.5 meters between supports |
|
Garden Misting |
0.8–1.2 meters between supports |
|
Landscape Fogging |
0.5–1.0 meters between supports |
Maintenance Recommendations
|
Frequency |
Task |
|
Monthly |
Visual inspection for leaks or loose connections |
|
Quarterly |
Check quick-connect mechanism for wear or damage |
|
Semi-Annually |
Inspect seals for degradation or cracking |
|
Annually |
Replace any damaged or worn elbows |
Material Selection Guide
|
Material |
Best For |
Temperature Range |
Pressure Rating |
Cost |
|
POM/Nylon |
Residential, indoor/outdoor |
-20℃ to 60℃ |
70 bar |
Low |
|
304 Stainless Steel |
Commercial, outdoor |
-20℃ to 80℃ |
70 bar |
Moderate |
|
316L Stainless Steel |
Coastal, harsh environments |
-20℃ to 80℃ |
70 bar |
High |
|
Brass |
Indoor, protected outdoor |
-10℃ to 60℃ |
70 bar |
Low-Moderate |
Common Configurations
|
Pipe Size |
Angle |
Part Number |
Material Options |
|
4mm |
90° |
QPE-4-90 |
POM, SS, Brass |
|
6mm |
90° |
QPE-6-90 |
POM, SS, Brass |
|
8mm |
90° |
QPE-8-90 |
POM, SS, Brass |
|
10mm |
90° |
QPE-10-90 |
POM, SS |
|
12mm |
90° |
QPE-12-90 |
SS |
|
6mm |
45° |
QPE-45-6 |
POM, SS, Brass |
|
8mm |
45° |
QPE-45-8 |
POM, SS, Brass |
|
10mm |
45° |
QPE-45-10 |
POM, SS |
|
8mm×6mm |
90° Reducing |
QPE-86-90-R |
SS, Brass |
|
10mm×8mm |
90° Reducing |
QPE-108-90-R |
SS, Brass |
Troubleshooting Guide
|
Issue |
Possible Cause |
Solution |
|
Leak at connection |
Pipe not fully inserted |
Depressurize, disconnect, reinsert properly |
|
Leak at connection |
Damaged seal |
Replace seal or entire elbow |
|
Pipe slips out |
Worn gripping teeth |
Replace elbow fitting |
|
Difficult insertion |
Pipe not cut square |
Recut pipe end square |
|
Pressure drop |
Debris in elbow |
Clean or replace elbow |
Limitations & Considerations
Not Recommended For
High-vibration industrial environments
Heavy-duty commercial or industrial misting systems
Applications requiring structural-grade pipe support
Extreme temperature environments (below -20℃ or above 80℃)
Continuous 24/7 industrial operation
Best Suited For
Residential backyard misting systems
Light commercial patio cooling
DIY misting installations
Temporary or seasonal misting setups
Systems requiring frequent reconfiguration
Conclusion
For residential and commercial misting system installations requiring rapid, tool-free directional pipe fittings, the Quick-connect pipe elbow delivers unmatched convenience through its innovative quick-connect design and user-friendly installation. With its versatile material options, comprehensive size range, and proven performance across residential, hospitality, and light commercial applications worldwide, this quick-connect solution offers an ideal choice for homeowners, DIY enthusiasts, and contractors seeking to minimize installation time, reduce labor costs, and simplify system maintenance-making it the preferred directional fitting for residential and light-duty high-pressure misting system distribution networks where speed, ease of use, and cost-effectiveness are essential requirements.
