The Outdoor Cooling Fog Unit is a high-pressure water mist generator for outdoor evaporative cooling. It filters incoming water, raises water pressure and delivers a controlled flow to high-pressure misting lines and atomizing nozzles.
The unit serves defined outdoor cooling zones such as patios, terraces, dining areas, courtyards, event spaces and recreational facilities. Pump flow, operating pressure and motor capacity are selected from nozzle demand, water supply, cooling zones and site power conditions.
Key Specifications
|
Parameter |
Specification |
|
Application |
Outdoor evaporative cooling |
|
Working pressure |
50–70 bar |
|
Droplet size |
Approx. 5–15 μm |
|
Water flow |
Selected according to nozzle demand |
|
Nozzle quantity |
Configured by system requirement |
|
Pump configuration |
High-pressure pump assembly |
|
Inlet filtration |
Included |
|
Control mode |
Manual or automatic |
|
Power supply |
Configured to site requirements |
|
Installation |
Centralized pump unit |
Cooling System Configuration
Pump Capacity: Pump capacity follows the combined flow of the active nozzles. The selected pump must provide the required flow while maintaining the specified operating pressure throughout the working range.
Nozzle Layout: Nozzle flow, orifice size, quantity and spacing determine mist distribution. Installation height and cooling-zone dimensions are considered when establishing the nozzle layout.
Water Supply: Available inlet flow, pressure and water quality are reviewed during system selection. Filtration is placed upstream of the high-pressure circuit to support consistent water delivery to the nozzles.
Outdoor Applications
Outdoor Dining
The unit supplies misting lines around patios, terraces and outdoor dining areas where cooling is concentrated within defined seating or service zones.
Commercial and Hospitality Areas
Outdoor entrances, courtyards, leisure spaces and other occupied areas can be divided into controlled misting zones according to the site layout and operating schedule.
Event and Recreation Areas
The centralized unit can serve permanent or seasonal installations where cooling requirements vary by event area, operating period or site configuration.
Selection Criteria
Cooling Zone: Identify the actual area requiring cooling before selecting equipment capacity. The active zone determines nozzle quantity, combined water flow and required pump capacity.
Pressure and Flow: Operating pressure must match the selected nozzle specification. Total nozzle flow provides the basis for pump selection and determines the required water supply capacity.
Electrical Supply: Motor capacity is matched to the available site electrical supply. Voltage, frequency and operating conditions should be confirmed as part of equipment selection.
Control Zones: Independent zones can be specified when different areas require separate operation. Zone control coordinates mist output with actual site use.
Equipment Construction
Pump Assembly

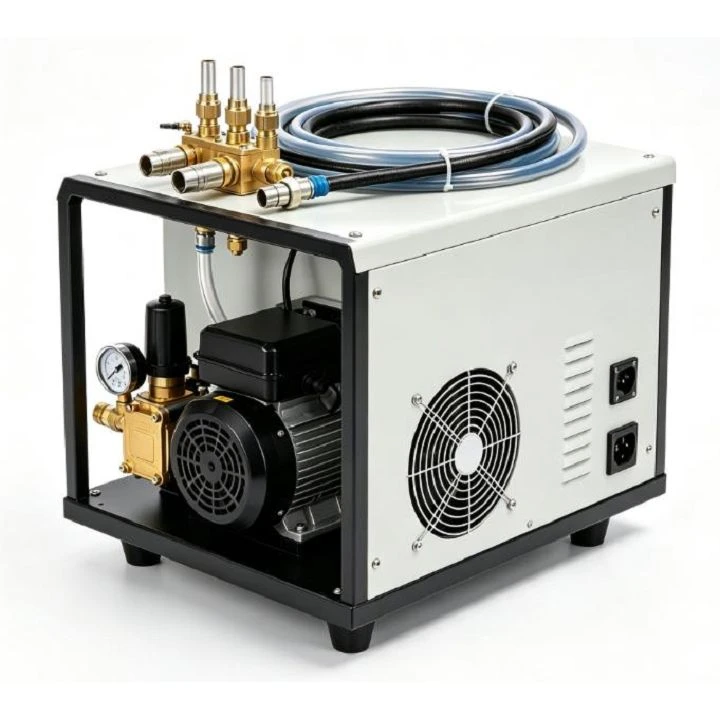

The main assembly combines the high-pressure pump, motor, inlet filtration and pressure-control components into a centralized unit for connection to the misting network.
High-Pressure Connections
Outlet connections are configured for dedicated high-pressure misting pipelines. Connection quantity and arrangement follow the selected pump and system layout.
Service Access
The pump, filtration and control components remain accessible for inspection and routine service. Filter condition, pump operation and water connections can be checked during scheduled maintenance.
Manufacturing and Quality Control
Assembly Inspection
Pump, motor, filtration, pressure-control and electrical components are checked against the specified equipment configuration during assembly.
Pressure Testing
The water circuit and high-pressure connections are tested under operating conditions. Pressure retention and connection integrity are verified before final release.
Functional Testing
The completed unit is checked for pump operation, pressure response, water delivery and control functions. The test status is reviewed before shipment.
Procurement Information
For equipment selection and quotation, provide the required cooling zone, planned nozzle quantity or layout, water supply conditions, electrical supply, operating zones and control requirements.
These inputs establish the required pump flow, working pressure, motor capacity, filtration arrangement and outlet configuration for the specified installation.
FAQ
Q: What is an Outdoor Cooling Fog Unit?
A: It is a centralized high-pressure water mist generator that supplies pressurized water to fine atomizing nozzles for outdoor evaporative cooling.
Q: What operating pressure does the unit use?
A: The working range is 50–70 bar. Final operating pressure is matched to the selected nozzle and system configuration.
Q: How is pump capacity determined?
A: Pump capacity is based on the combined flow of the active nozzles and the pressure required at the misting network. Water supply and operating zones are also considered.
Q: How many nozzles can one unit supply?
A: The quantity depends on nozzle flow rate, operating pressure and available pump capacity. The final quantity is established from the complete misting layout rather than a fixed nozzle count.
Q: What information is needed for equipment selection?
A: Provide the cooling-zone dimensions, nozzle quantity or layout, water supply conditions, electrical supply, number of operating zones and required control method.
