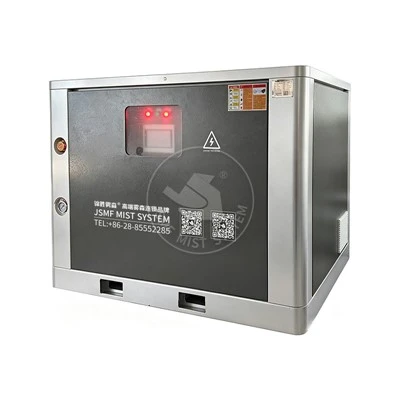

Water Fog Generator - High-Pressure Atomization Equipment for Cooling, Dust Control & Landscape Applications
The water fog generator represents Jinsheng Mist's core high-pressure atomization equipment, designed to produce ultra-fine water droplets ranging from 5–15 microns for cooling, dust suppression, humidification, and landscape fogging applications. This compact yet powerful unit integrates a high-pressure plunger pump, intelligent control system, and multiple safety protections into a single enclosure, delivering reliable mist generation at operating pressures up to 70 bar. Suitable for industrial facilities, commercial spaces, and outdoor public areas, this fogging equipment provides energy-efficient, low-maintenance operation with flexible configuration options for diverse misting requirements worldwide.
High-Pressure Pump System
Our fog producing unit features robust pump technology:
Plunger Pump: 50–70 bar operating pressure with ceramic or stainless steel plungers
Motor Options: 0.75–7.5 kW power ratings for various coverage areas
Direct Drive or Belt Drive: Flexible transmission options for different installation needs
Pressure Regulation: Adjustable pressure valve for customized mist output
Intelligent Control System
The mist generation system includes comprehensive controls:
Digital Controller: LCD display with timer and scheduling functions
Automatic Operation: Start/stop based on timer or external sensor signals
Multi-Zone Support: Solenoid valve control for up to 8 independent zones
Remote Interface: Optional WiFi module for smartphone app control
Safety Protection Features
Water Shortage Protection: Automatic shutdown when water level is low
Overload Protection: Motor thermal protection prevents damage from excessive current
Pressure Relief Valve: Automatic pressure release prevents system over-pressurization
Dry Run Protection: Prevents pump operation without water supply
Compact & Durable Design
All-in-One Enclosure: Integrated pump, motor, controls, and filtration in single cabinet
Weather-Resistant Construction: IP54 protection rating for outdoor installation
Low Noise Operation: <60 dB sound level for quiet environments
Modular Design: Easy access panels for maintenance and component replacement
-
Superior Atomization Performance
Fine Droplet Size: 5–15 microns for instant evaporation without surface wetting
Consistent Output: Stable pressure ensures uniform mist quality
Wide Coverage: Single unit supports 200–5,000㎡ depending on model
Quick Activation: Instant mist generation upon system startup
-
Energy & Water Efficiency
Low Power Consumption: 0.75–7.5 kW for comprehensive area coverage
Optimized Water Usage: 5–50 L/hour based on nozzle configuration
Variable Speed Option: VFD models reduce energy consumption by 30–40%
Eco-Friendly Operation: No chemical refrigerants, zero emissions
-
Reliable & Low Maintenance
Industrial-Grade Components: Designed for continuous 24/7 operation
Self-Priming Pump: Automatic priming eliminates manual intervention
Easy Filter Access: Quick-replace filtration system protects nozzles
Extended Service Life: 15,000+ hours with proper maintenance
-
Flexible Installation
Multiple Mounting Options: Wall-mount, floor-stand, or mobile cart configurations
Simple Connection: Standard water inlet and quick-connect pipe outlets
Scalable Design: Multiple units can be linked for larger installations
Plug-and-Play: Minimal setup time with pre-wired controls
Performance Specifications
|
Parameter |
Specification |
|
Operating Pressure |
50–70 bar (adjustable) |
|
Pump Power |
0.75–7.5 kW |
|
Water Flow Rate |
5–50 L/hour (configurable) |
|
Droplet Size |
5–15 microns |
|
Coverage Area |
200–5,000㎡ (model dependent) |
|
Noise Level |
<60 dB |
|
Water Inlet |
Standard 1/2" or 3/4" connection |
|
Outlet Ports |
4–8 quick-connect ports |
|
Protection Rating |
IP54 (standard), IP65 (optional) |
|
Power Supply |
220V/380V (50/60Hz) |
|
Operating Temperature |
-10℃ to 50℃ |
|
Certifications |
CE, RoHS, ISO9001 |
Application Scenarios
|
Industry |
Application |
|
Industrial |
Factory cooling, warehouse dust control, manufacturing facilities |
|
Commercial |
Outdoor restaurants, shopping plazas, hotel pools |
|
Agriculture |
Greenhouse humidification, livestock cooling, mushroom farming |
|
Public Facilities |
Parks, bus stops, pedestrian walkways, stadiums |
|
Landscape |
Garden misting, water features, artificial fog effects |
|
Waste Management |
Landfill dust suppression, recycling facilities |
Model Comparison
|
Model |
Power |
Pressure |
Coverage |
Best For |
|
WFG-750 |
0.75 kW |
50 bar |
200–500㎡ |
Small patios, gardens |
|
WFG-1500 |
1.5 kW |
60 bar |
500–1,500㎡ |
Restaurants, medium facilities |
|
WFG-3000 |
3.0 kW |
70 bar |
1,500–3,000㎡ |
Large commercial, warehouses |
|
WFG-7500 |
7.5 kW |
70 bar |
3,000–5,000㎡ |
Industrial, public facilities |
Maintenance Recommendations
|
Frequency |
Task |
|
Weekly |
Visual inspection for leaks or abnormal noise |
|
Monthly |
Check oil level, clean/replace water filter |
|
Quarterly |
Inspect nozzles, verify pressure settings |
|
Semi-Annually |
Change pump oil, test safety features |
|
Annually |
Comprehensive inspection, replace worn seals |
Conclusion
For applications requiring reliable, efficient, and versatile mist generation, the water fog generator delivers exceptional performance through its robust high-pressure pump design, intelligent control system, and comprehensive safety protections. With its compact all-in-one construction, energy-efficient operation, and flexible configuration options, this fogging equipment offers an ideal solution for facility managers, contractors, and property owners seeking to achieve effective cooling, dust suppression, or landscape fogging with minimal installation complexity and maintenance requirements.
Whether for industrial dust control, commercial outdoor cooling, agricultural humidification, or public space comfort enhancement, the water fog generator provides the power, reliability, and adaptability necessary for successful misting installations across diverse environments-making it the preferred choice for professionals who demand consistent atomization performance, long-term durability, and cost-effective operation in residential, commercial, and industrial applications worldwide.
