Outdoor Misting Fan - Industrial Evaporative Cooling Solution for Open Spaces
The outdoor misting fan represents Jinsheng Mist's integrated approach to large-area evaporative cooling, combining high-velocity airflow with precision water atomization to deliver instant temperature reduction in open-air environments. This powerful unit features a robust industrial fan paired with a high-pressure misting system that produces 5–15 micron droplets, achieving ambient temperature reductions of 5–10℃ across coverage areas up to 500㎡. Engineered for commercial patios, industrial facilities, event venues, and public spaces, this all-in-one cooling solution provides energy-efficient, portable, and immediate relief from heat without the need for complex installation or ductwork.
Integrated Fan & Misting Design
Our misting cooling fan combines two proven technologies:

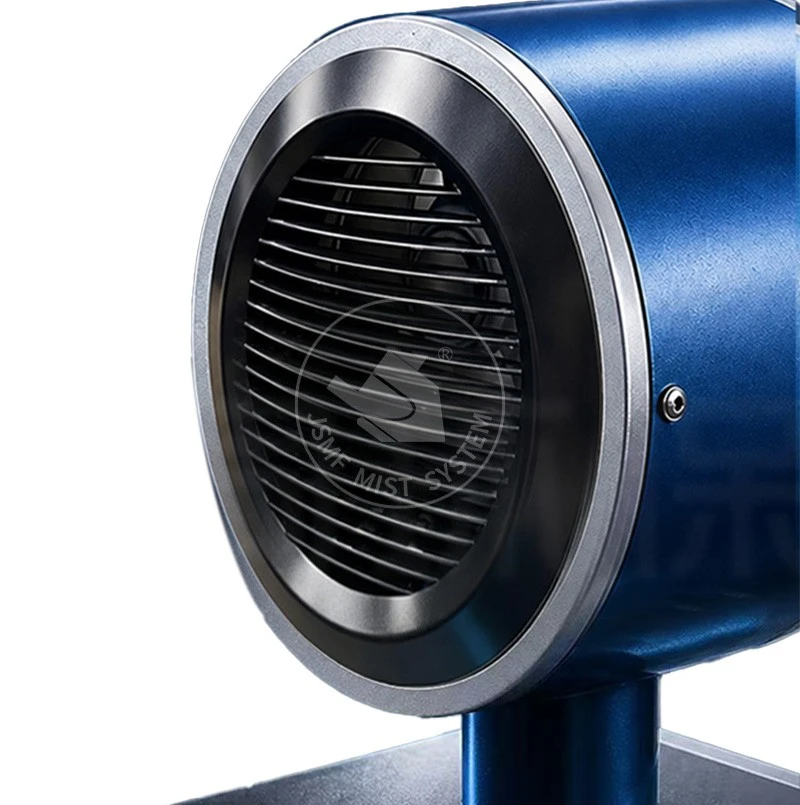

High-Velocity Fan: Industrial-grade axial or centrifugal fan produces 5,000–15,000 CFM airflow

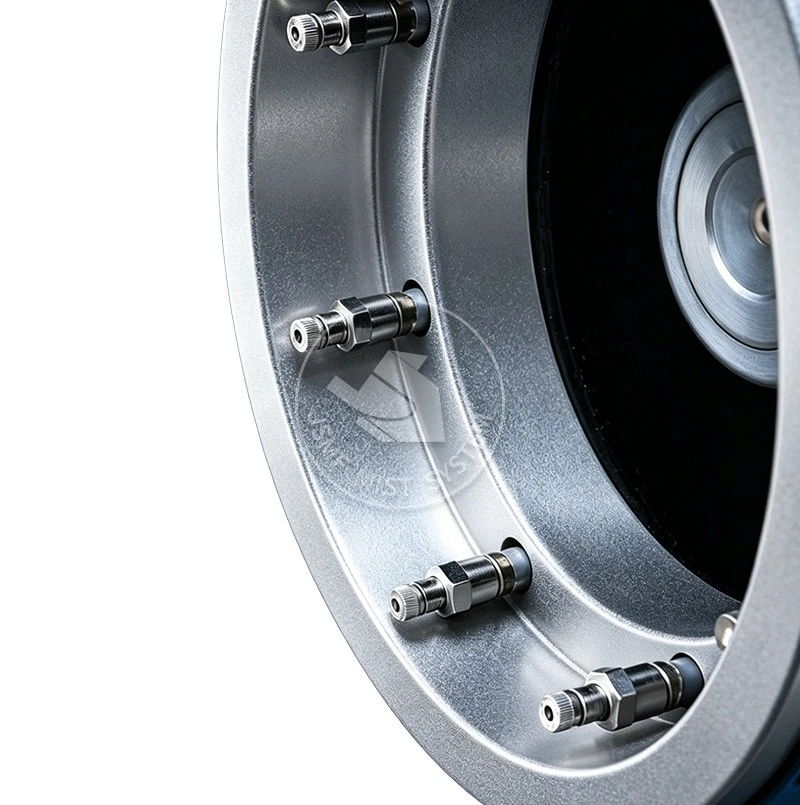

High-Pressure Misting Ring: Integrated nozzle ring around fan blade produces uniform mist distribution
Adjustable Mist Density: Control mist output independently from fan speed
Tilting Head: Manual or electric tilt adjustment for targeted cooling direction
Robust Construction
The fog fan system is built for demanding outdoor environments:
Weather-Resistant Housing: Powder-coated steel or aluminum construction with IP54 protection
Stainless Steel Components: 304/316L nozzles and misting ring for corrosion resistance
Heavy-Duty Base: Stable wheeled stand or fixed mounting bracket options
UV-Resistant Tubing: PE or nylon misting lines withstand prolonged sun exposure
Intelligent Control Systems
Variable Speed Control: 3–5 fan speed settings for airflow adjustment
Mist Flow Regulation: Independent mist pressure control valve
Timer Function: Programmable operation schedules (optional)
Remote Control: Wireless remote for fan and mist operation (premium models)
Smart Sensor Integration: Temperature/humidity auto-adjustment (IoT-enabled models)
Portable & Versatile Installation
Wheeled Base: Easy relocation across venues and events
Multiple Power Options: 110V/220V single-phase or 380V three-phase
Quick Water Connection: Standard garden hose or direct plumbing hookup
Wall/Ceiling Mount: Optional brackets for permanent installation
Key Advantages
Rapid Cooling Performance
Temperature Reduction: 5–10℃ instant cooling effect in outdoor spaces
Large Coverage Area: Effective cooling radius up to 15 meters (500㎡)
Immediate Effect: No warm-up time required, instant cooling upon activation
Uniform Distribution: Fan disperses mist evenly across entire coverage zone
Energy Efficiency
Low Power Consumption: 0.5–2.2 kW depending on fan size and mist pump
80% Energy Savings: Compared to traditional air conditioning for open spaces
Water Efficiency: 5–20 L/hour water consumption based on mist density
Eco-Friendly: No chemical refrigerants, zero emissions
Cost-Effective Solution
Lower Initial Investment: Significantly cheaper than HVAC systems
Minimal Installation: No ductwork or complex infrastructure required
Reduced Operating Costs: Lower energy and water bills
Portable Asset: Can be relocated and reused across multiple venues
Versatile Application Range
|
Application |
Benefit |
|
Outdoor Dining |
Customer comfort, extended seating season |
|
Industrial Facilities |
Worker safety, heat stress prevention |
|
Event Venues |
Guest comfort at weddings, concerts, festivals |
|
Construction Sites |
Heat relief for outdoor workers |
|
Agricultural |
Livestock cooling, greenhouse ventilation |
|
Public Spaces |
Bus stops, parks, pedestrian areas |
Performance Specifications
|
Parameter |
Specification |
|
Fan Diameter |
500mm, 650mm, 750mm, 900mm (selectable) |
|
Airflow Volume |
5,000–15,000 CFM |
|
Motor Power |
0.5–2.2 kW |
|
Misting Pump Pressure |
50–70 bar |
|
Misting Pump Power |
0.18–0.75 kW |
|
Nozzle Quantity |
4–8 nozzles per unit |
|
Droplet Size |
5–15 microns |
|
Water Consumption |
5–20 L/hour (adjustable) |
|
Coverage Radius |
8–15 meters |
|
Coverage Area |
200–500㎡ |
|
Noise Level |
65–75 dB |
|
Power Supply |
110V/220V/380V (50/60Hz) |
|
Protection Rating |
IP54 (standard), IP65 (optional) |
|
Operating Temperature |
-10℃ to 50℃ |
|
Certifications |
CE, RoHS, ISO9001 |
Model Comparison
|
Model |
Fan Diameter |
Airflow |
Power |
Coverage |
Best For |
|
OMF-500 |
500mm |
5,000 CFM |
0.5 kW |
200㎡ |
Small patios, cafes |
|
OMF-650 |
650mm |
8,000 CFM |
0.75 kW |
300㎡ |
Medium restaurants, events |
|
OMF-750 |
750mm |
11,000 CFM |
1.5 kW |
400㎡ |
Large venues, industrial |
|
OMF-900 |
900mm |
15,000 CFM |
2.2 kW |
500㎡ |
Stadiums, factories, warehouses |
Application Scenarios
|
Industry |
Application |
|
Hospitality |
Outdoor restaurants, hotel pools, resort patios, beer gardens |
|
Event Management |
Weddings, concerts, festivals, outdoor exhibitions |
|
Industrial |
Factory floors, warehouses, loading docks, workshops |
|
Construction |
Temporary cooling for outdoor work sites |
|
Agriculture |
Livestock barns, greenhouse cooling, mushroom farming |
|
Commercial |
Shopping plaza entrances, bus stops, waiting areas |
|
Sports & Recreation |
Stadium sidelines, golf courses, outdoor gyms, campsites |
|
Public Facilities |
Park cooling stations, pedestrian walkways, queue areas |
Installation & Setup
Portable Setup (Wheeled Base)
Position unit on stable, level ground
Connect water supply (garden hose or direct plumbing)
Plug in electrical power (appropriate voltage)
Adjust fan tilt angle for desired coverage direction
Activate fan and mist controls independently
Permanent Installation (Wall/Ceiling Mount)
Mount bracket to structural support using provided hardware
Secure fan unit to bracket with safety cables
Connect water line with shut-off valve and filter
Wire electrical connection by licensed electrician
Test operation and adjust mist density
Water Supply Requirements
|
Requirement |
Specification |
|
Water Pressure |
2–5 bar (with booster pump) |
|
Water Quality |
Filtered to 100 microns minimum |
|
Connection Size |
1/2" or 3/4" standard hose thread |
|
Drainage |
Not required (mist evaporates) |
Maintenance Guidelines
|
Frequency |
Task |
|
Daily |
Visual inspection for proper mist pattern and airflow |
|
Weekly |
Clean fan blades and check nozzle spray pattern |
|
Monthly |
Descale nozzles and replace water filter |
|
Quarterly |
Inspect motor, bearings, and electrical connections |
|
Semi-Annually |
Lubricate motor bearings if required |
|
Annually |
Full system inspection and component replacement |
Winter Storage (Cold Climates)
Drain all water from pump, lines, and nozzles
Disconnect water supply and store hoses indoors
Cover unit with weatherproof cover
Store indoors if possible, or protect from freezing
Inspect before spring reactivation
Global Project Deployments
Middle East Outdoor Dining Complex (Dubai)
Deployed 12 units across restaurant patio areas:
Temperature reduction: 8–10℃ during peak summer (45℃+ ambient)
Customer satisfaction: 97% positive feedback
Operating season: Extended by 3 months annually
Southeast Asia Manufacturing Facility (Vietnam)
Installed 20 units across assembly workshop:
Worker heat stress incidents: 90% reduction
Productivity improvement: 15% during hot season
Energy cost savings: 60% vs. traditional AC attempt
European Music Festival (Spain)
Rented 50 units for 3-day outdoor event:
Guest comfort rating: 94% satisfaction
Heat-related medical incidents: Zero reported
Setup time: 2 hours for complete deployment
Accessories & Options
|
Accessory |
Description |
|
Timer Controller |
Programmable on/off schedules |
|
Remote Control |
Wireless operation up to 30 meters |
|
IoT Module |
Smartphone app control and monitoring |
|
Water Filter Kit |
50-micron filtration for hard water areas |
|
Extension Hose |
10m/20m high-pressure misting line |
|
Safety Cage |
Protective guard for fan blades |
|
Weather Cover |
Waterproof cover for outdoor storage |
|
Mounting Bracket |
Wall or ceiling installation kit |
Conclusion
For effective, energy-efficient cooling in open-air environments where traditional air conditioning is impractical or cost-prohibitive, the outdoor misting fan delivers unparalleled performance through its integrated fan-and-mist technology. With its portable design, rapid deployment capability, proven temperature reduction of 5–10℃, and versatile application across hospitality, industrial, event, and public spaces worldwide, this all-in-one cooling solution offers an ideal balance of performance, efficiency, and affordability-making it the preferred choice for facility managers, event organizers, and business owners seeking immediate relief from heat while minimizing energy consumption and operational costs in any outdoor or semi-outdoor environment.
